CREW Series

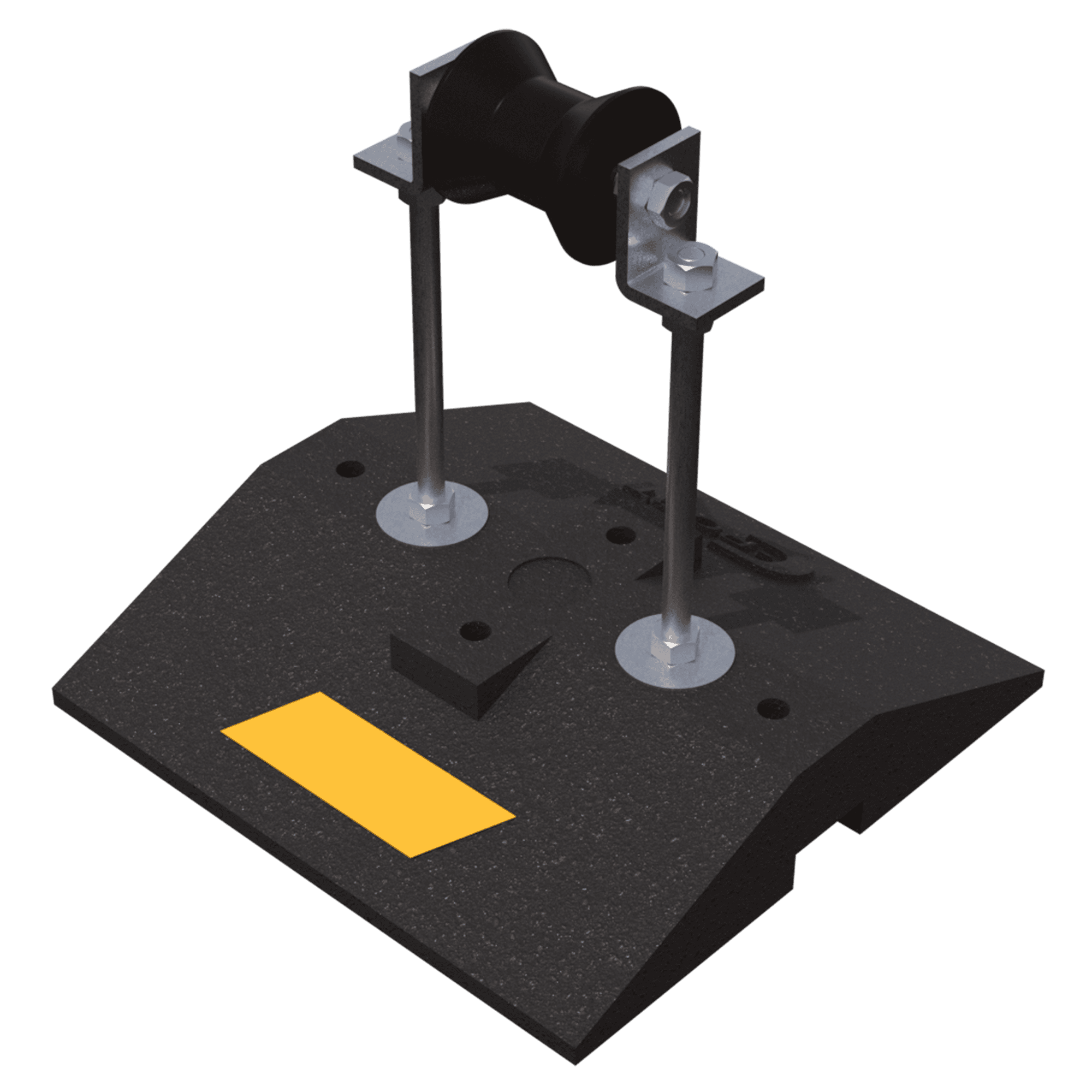

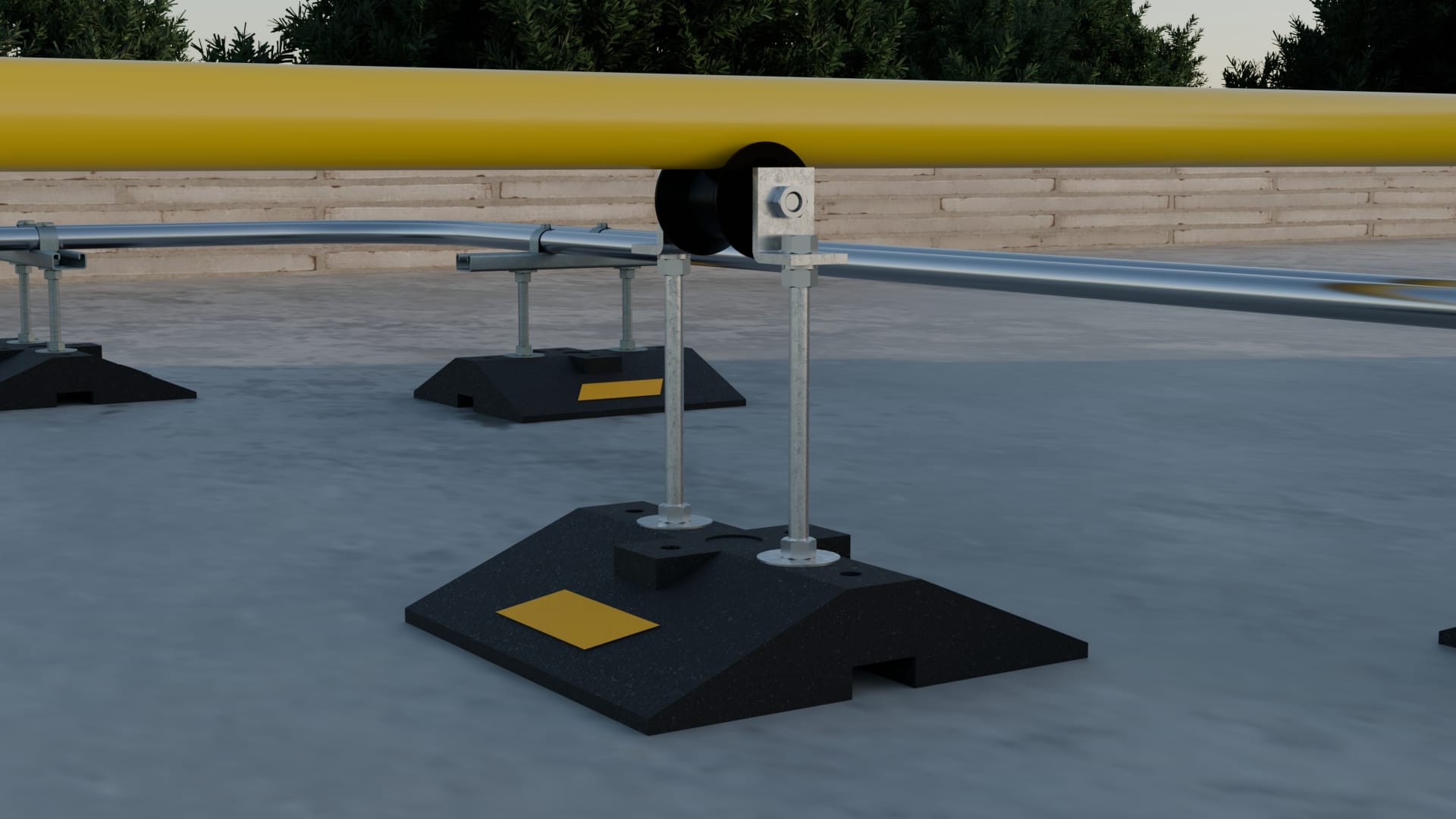

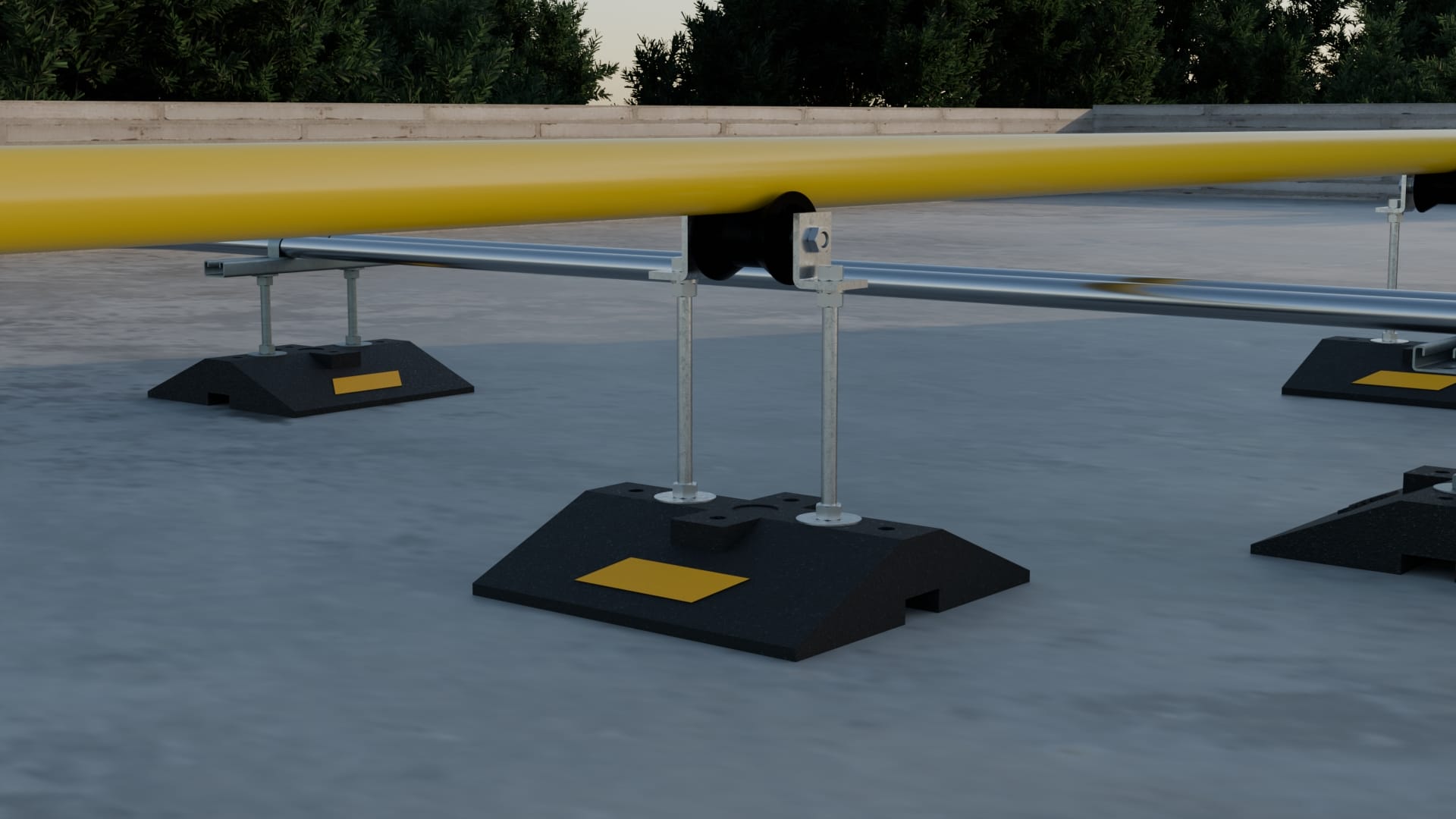

The CREW Roller Support (Extension) Series is a non-penetrating rooftop support with height to roller centre adjustable from 6” to 16”. Built on C-Port’s wide-body base, providing increased stability while delivering elevated support for gas and refrigeration piping and accommodating longitudinal pipe movement. It is suitable for most types of roofing materials or other flat surfaces.
SKU | PIPE SIZE | MAX. HEIGHT TO ROLLER CENTRE | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|---|
| CREW12-12-3 | Up to 3” | 12” (305mm) | 12” (305mm) | 12” (305mm) | 12.2 lbs | 400 lbs |
| CREW12-12-4 | 3” to 4” | 12” (305mm) | 12” (305mm) | 12” (305mm) | 12.2 lbs | 400 lbs |
| CREW12-12-6 | 4” to 6” | 12” (305mm) | 12” (305mm) | 12” (305mm) | 13.1 lbs | 200 lbs |
| CREW12-16-3 | Up to 3” | 16” (406mm) | 12” (305mm) | 12” (305mm) | 12.6 lbs | 400 lbs |
CREW12-16-4 | 3” to 4” | 16” (406mm) | 12” (305mm) | 12” (305mm) | 12.7 lbs | 400 lbs |
CREW12-16-6 | 4” to 6” | 16” (406mm) | 12” (305mm) | 12” (305mm) | 13.5 lbs | 200 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base – 100% recycled rubber, UV resistant
Roller – TPO (Thermoplastic Polyolefin)
Rod – 1/2”-13 zinc-plated all-threaded
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
