CRE Series

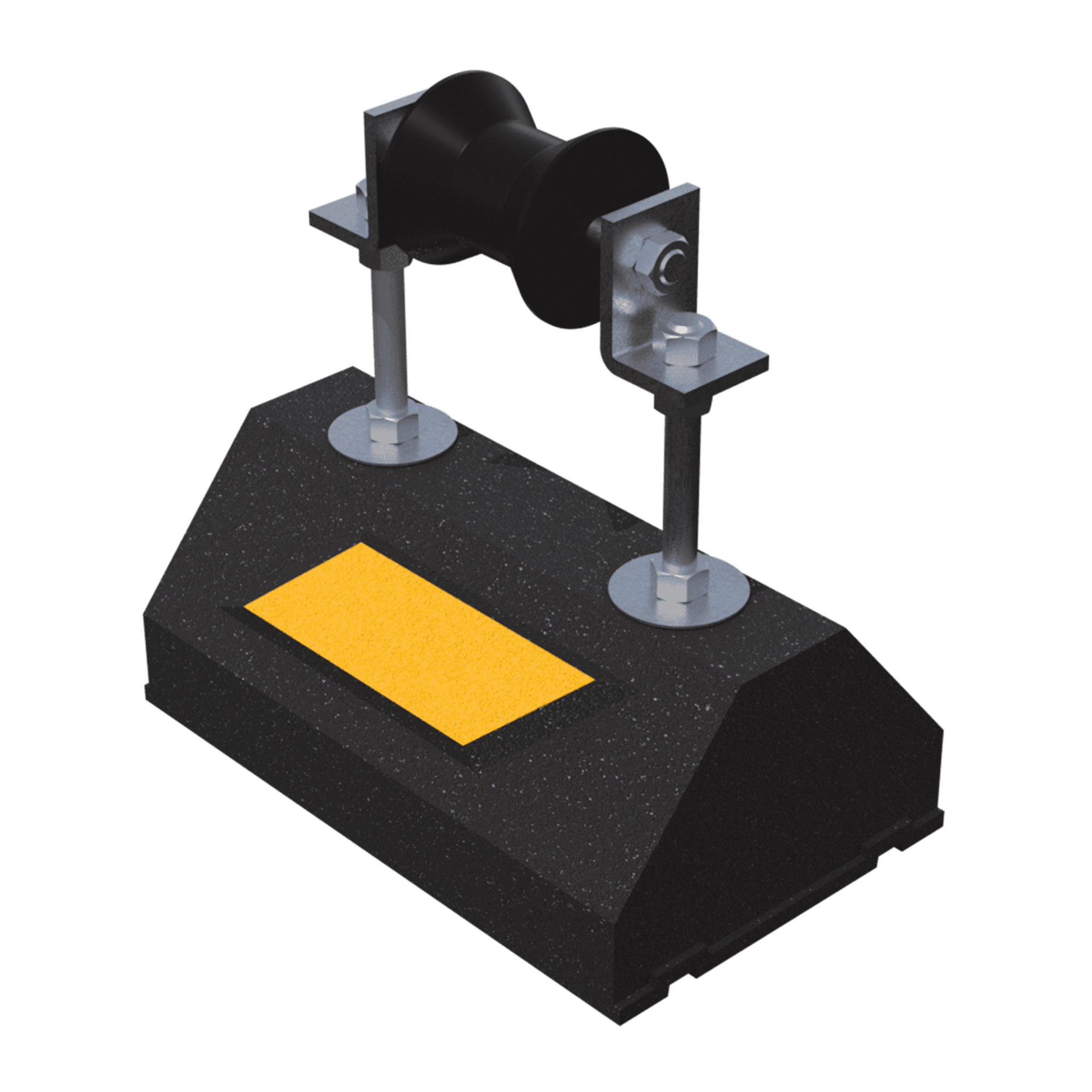

The CRE Roller Support (Extension) Series is a non-penetrating rooftop support with height to roller centre adjustable from 6.5” to 12”. It is designed to provide elevated support for gas and refrigeration piping while accommodating longitudinal pipe movement. It is suitable for most types of roofing materials or other flat surfaces.
| SKU | PIPE SIZE | MAX. HEIGHT TO ROLLER CENTRE | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|---|
| CRE10-8-3 | Up to 3” | 8” (203mm) | 6” (152mm) | 9.5” (241mm) | 7.2 lbs | 400 lbs |
| CRE10-8-4 | 3” to 4” | 8” (203mm) | 6” (152mm) | 9.5” (241mm) | 7.2 lbs | 400 lbs |
| CRE10-12-3 | Up to 3” | 12” (305mm) | 6” (152mm) | 9.5” (241mm) | 7.6 lbs | 400 lbs |
| CRE10-12-4 | 3” to 4” | 12” (305mm) | 6” (152mm) | 9.5” (241mm) | 7.7 lbs | 400 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Roller - TPO (Thermoplastic Polyolefin)
Rod - Two 1/2”-13 zinc-plated all-threaded rod risers
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
