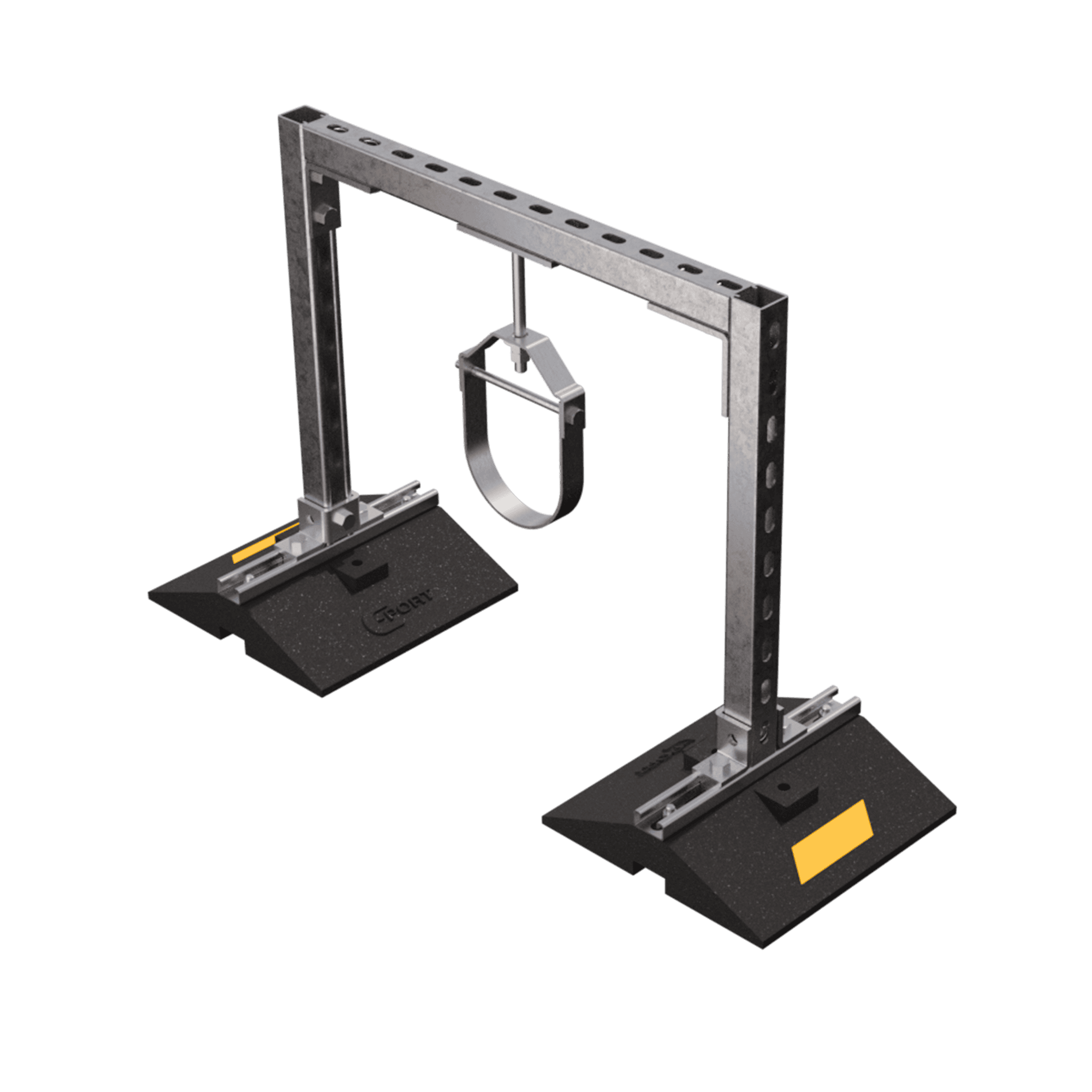

CESW Series

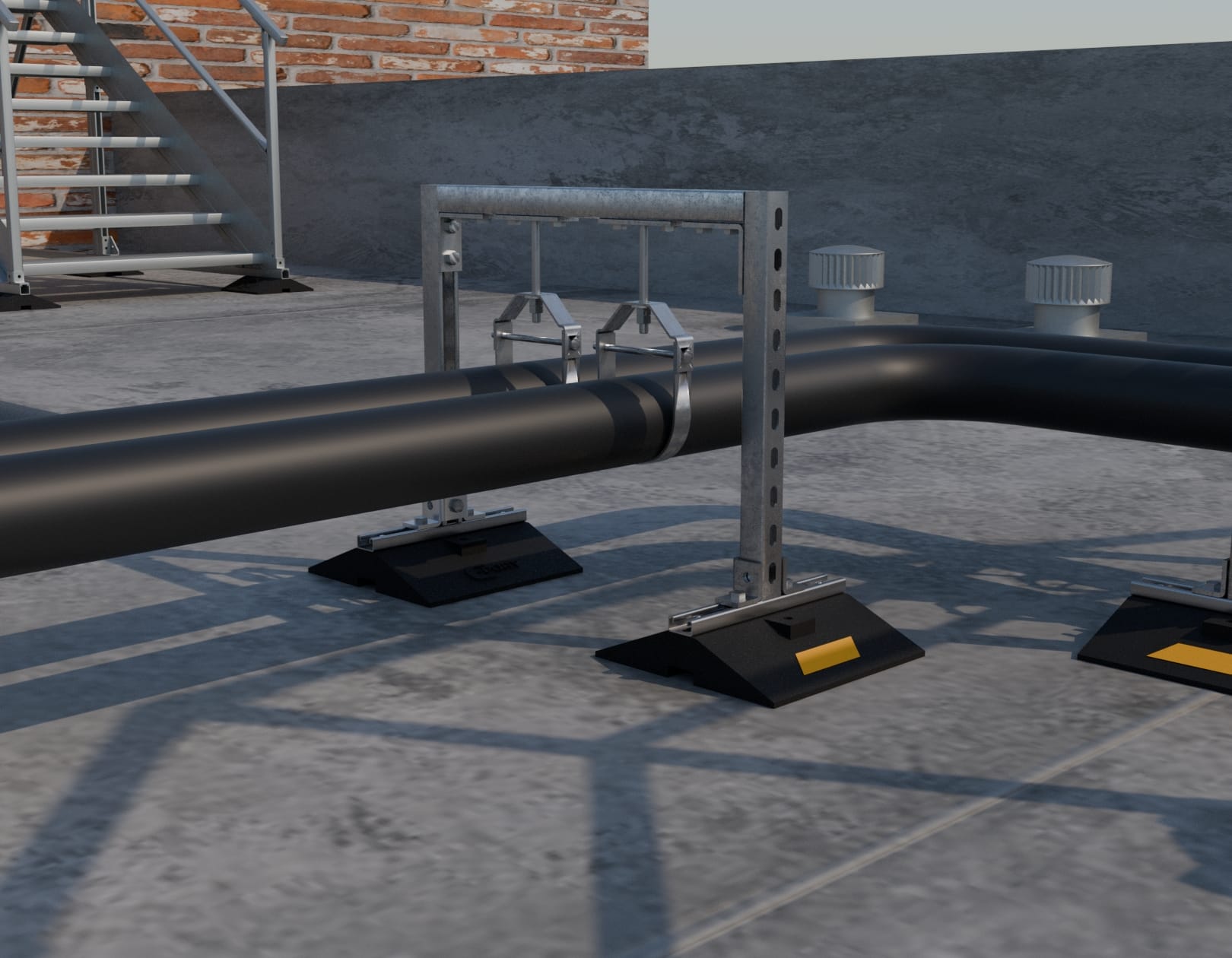

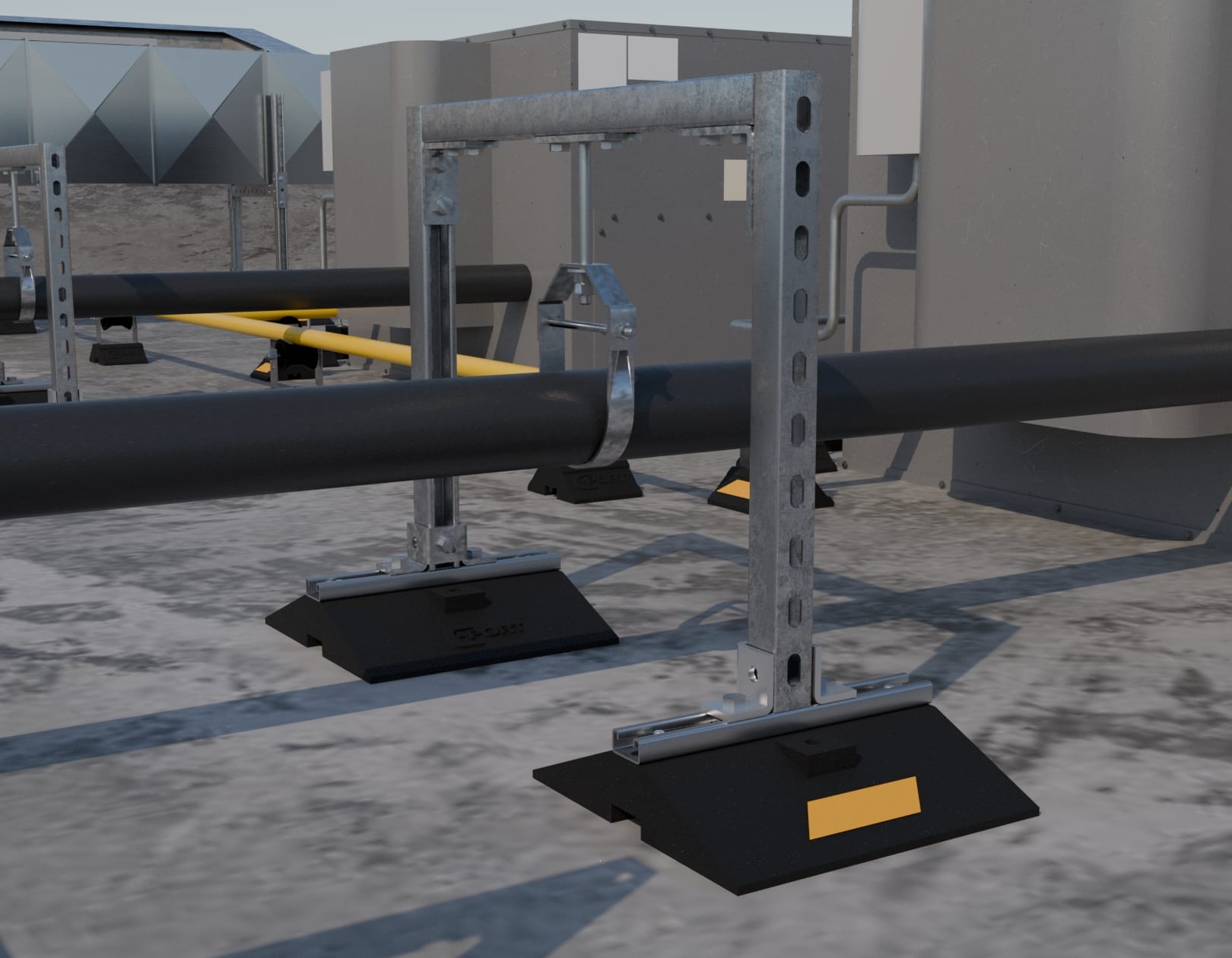

The CESW Series can support gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications. It is designed for rooftop applications requiring a heavier load bearing, and is suitable for most types of roofing material or other flat surfaces. The wide bases provide this series with added stability. The CESW Series is suitable for use with one or two pipe hangers (not included).
Available in corrosion-resistant stainless steel or aluminum.
SKU | HEIGHT | CROSSBAR WIDTH | BASE WIDTH | BASE LENGTH | WEIGHT | MAX. CONCENTRATED LOAD |
|---|---|---|---|---|---|---|
| CESW12-2424 | 24” (610mm) | 24” (610mm) | 12” (305mm) | 12” (305mm) | 35.3 lbs | 700 lbs |
| CESW12-3624 | 36” (914mm) | 24” (610mm) | 12” (305mm) | 12” (305mm) | 38.9 lbs | 700 lbs |
| CESW12-4824 | 48” (1219mm) | 24” (610mm) | 12” (305mm) | 12” (305mm) | 45.6 lbs | 700 lbs |
CESW24-2424 | 24” (610mm) | 24” (610mm) | 12” (305mm) | 24” (610mm) | 56.6 lbs | 700 lbs |
CESW24-3624 | 36” (914mm) | 24” (610mm) | 12” (305mm) | 24” (610mm) | 59.9 lbs | 700 lbs |
CESW24-4824 | 48” (1219mm) | 24” (610mm) | 12” (305mm) | 24” (610mm) | 63.4 lbs | 700 lbs |
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized strut channel (13/16” high)
Crossbeam and Upright - 12-gauge galvanized steel strut (1 5/8” wide x 1 5/8” high)
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
