CE Series

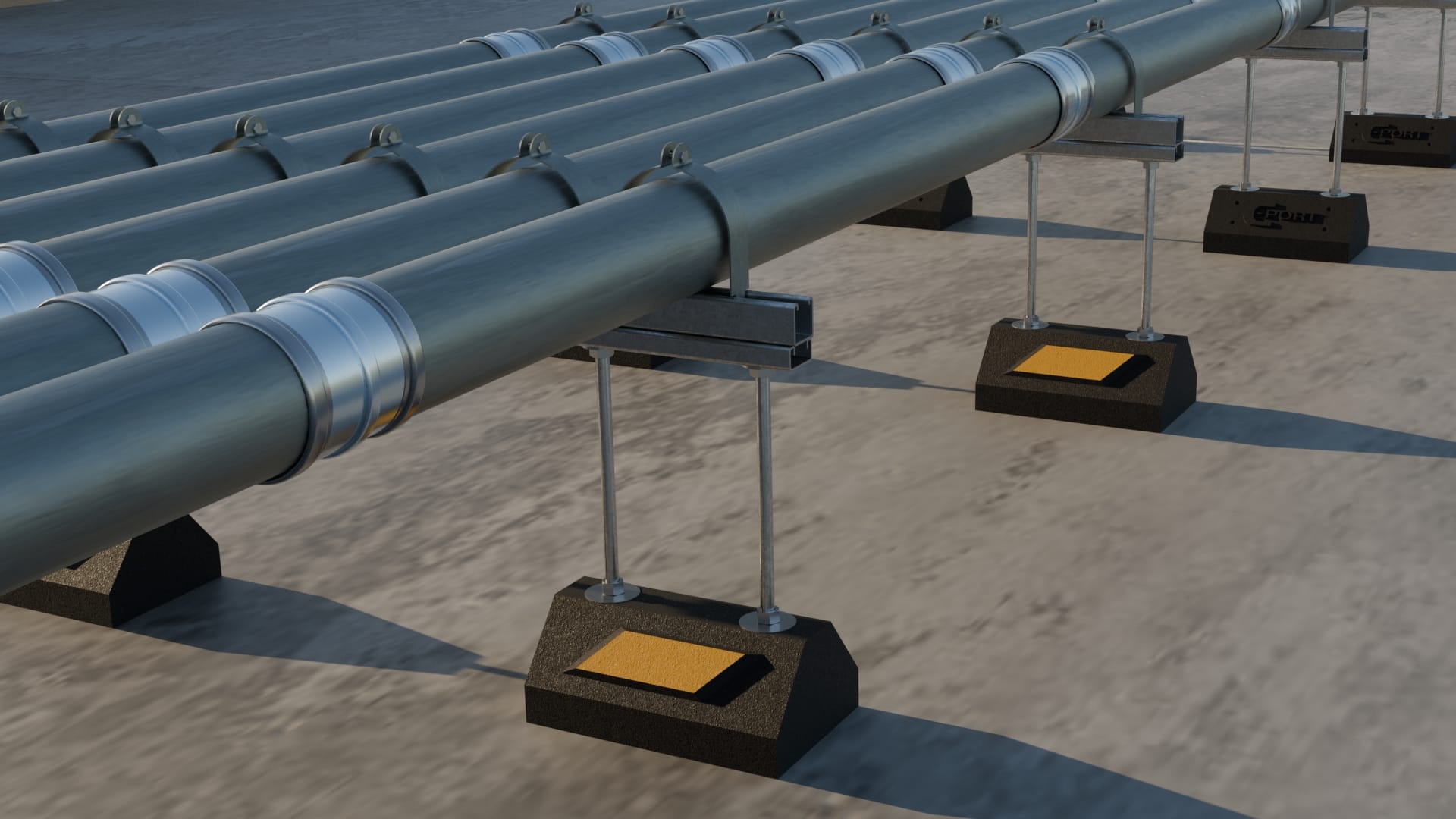

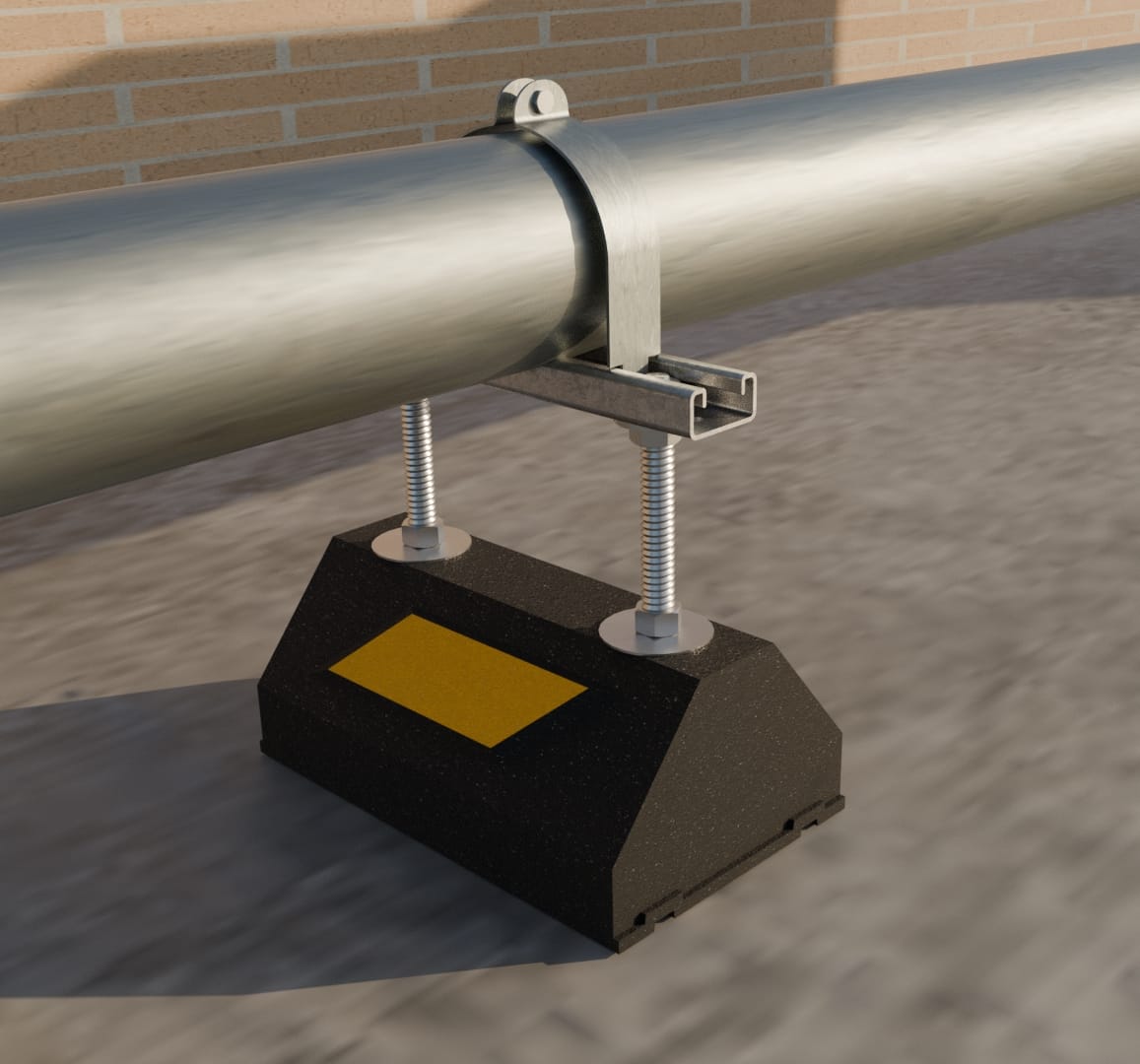

The CE Extension Series is a non-penetrating rooftop support with adjustable height from 5” to 16”, making it ideal for sloped pipe installations. It is designed to support gas and refrigeration piping, cable trays, electrical conduit, HVAC equipment, and multiple-line rooftop systems. It is suitable for most types of roofing materials or other flat surfaces and accepts various straps and/or clamps (sold and supplied by others).
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
| SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX LOAD |
|---|---|---|---|---|---|
CE10-8 | 8” (203mm) | 6” (152mm) | 9.5” (241mm) | 6.6 lbs | 400 lbs |
CE10-12 | 12” (305mm) | 6” (152mm) | 9.5” (241mm) | 7.1 lbs | 400 lbs |
CE10-16 | 16" (406mm) | 6" (152mm) | 9.5” (241mm) | 7.5 lbs | 400 lbs |
Note: All measurements may vary by +/- 3%
General Information

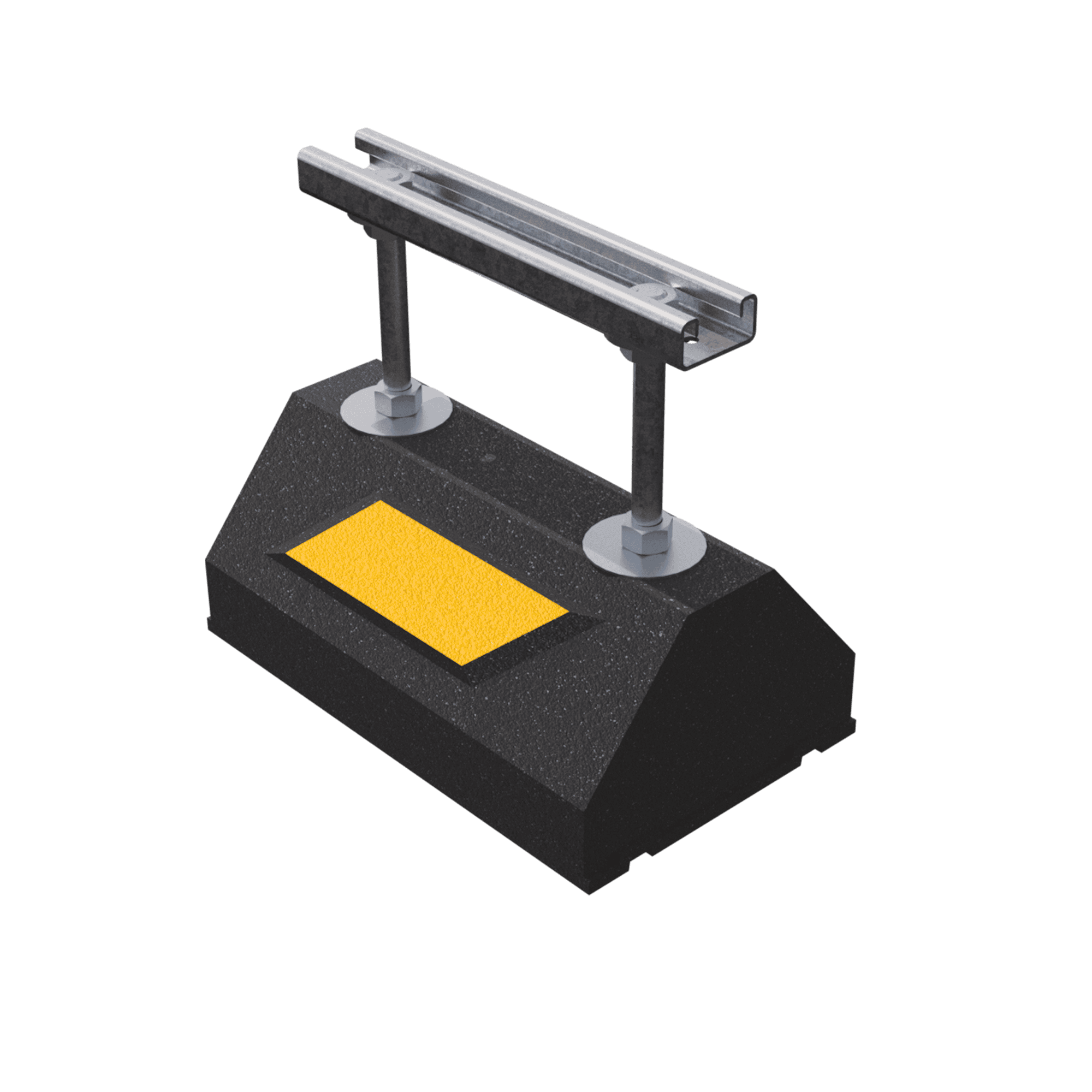

Base – 100% recycled rubber, UV resistant
Strut – 14-gauge galvanized steel strut (13/16” high)
Rod – Two 1/2”-13 zinc-plated all-threaded rod risers
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
