DSW Series

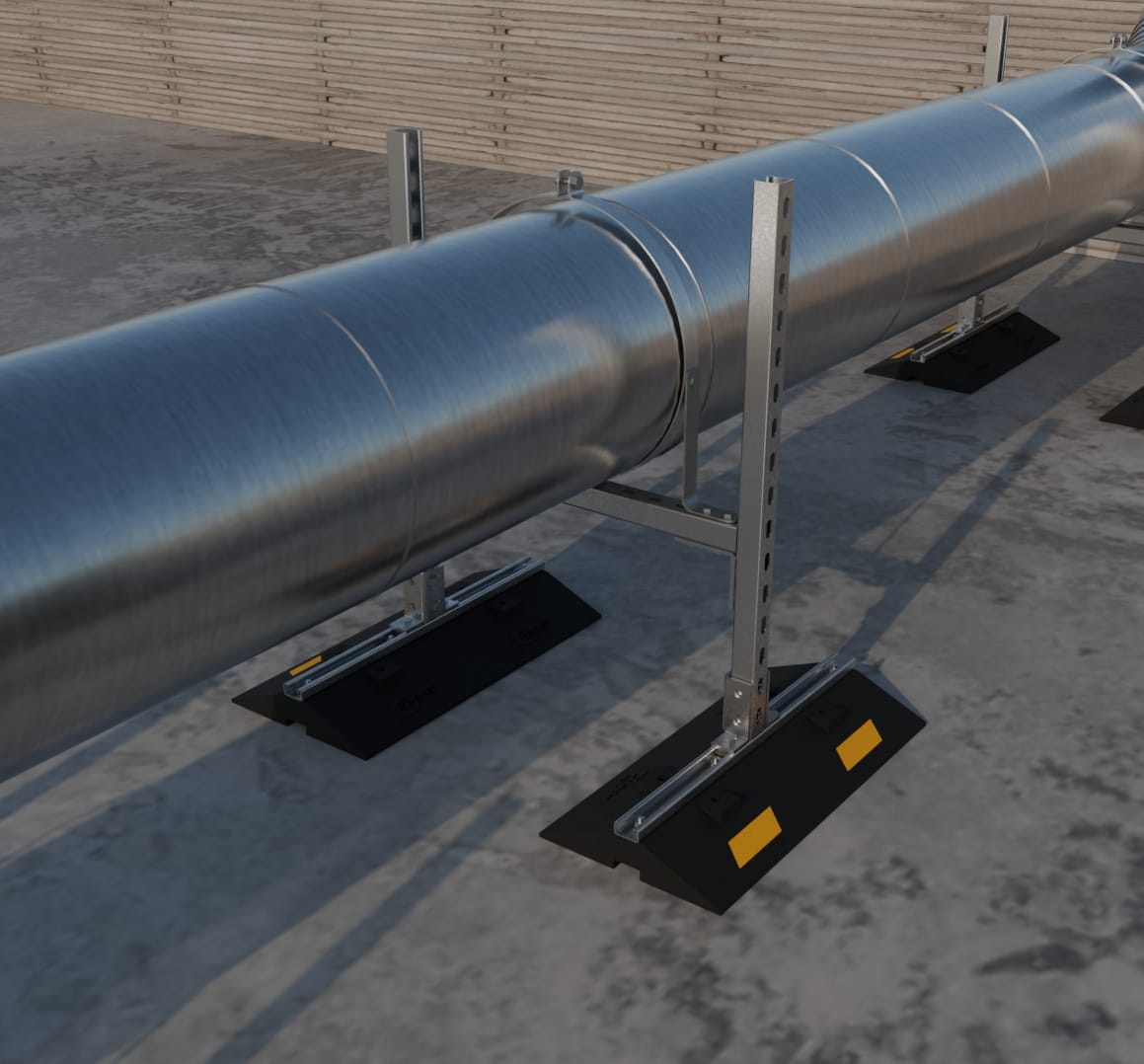

The DSW Duct Support Series is designed specifically for HVAC ductwork. The fixed dimensions give the ability for quick install times. The double widebody C-Ports (CW24) provide added support with a larger footprint and are made of 100% recycled rubber. The DSW Series also come equipped with 4-hole 90-degree fittings for added crossbeam support and 8 hold wings fittings to connect the vertical struts to the C-port bases.
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
SKU | CROSSBEAM HEIGHT | CROSSBEAM WIDTH | BASE LENGTH | WEIGHT | MAX. UNIFORM LOAD |
|---|---|---|---|---|---|
| DSW24-3624 | Up to 36” (914 mm) | 24” (610 mm) | 24” (610 mm) | 59.6 lbs | 1400 lbs |
| DSW24-3640 | Up to 36” (914 mm) | 40” (1016 mm) | 24” (610 mm) | 62 lbs | 850 lbs |
| DSW24-4840 | Up to 48” (1219 mm) | 40” (1016 mm) | 24” (610 mm) | 65.6 lbs | 850 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized steel strut (13/16” high)
Crossbeam and Vertical Strut - 12-gauge slotted strut (1 5/8" wide x 1 5/8" high)
10 Years
Refer to local code.
May qualify for L.E.E.D credits.
