CXP Series

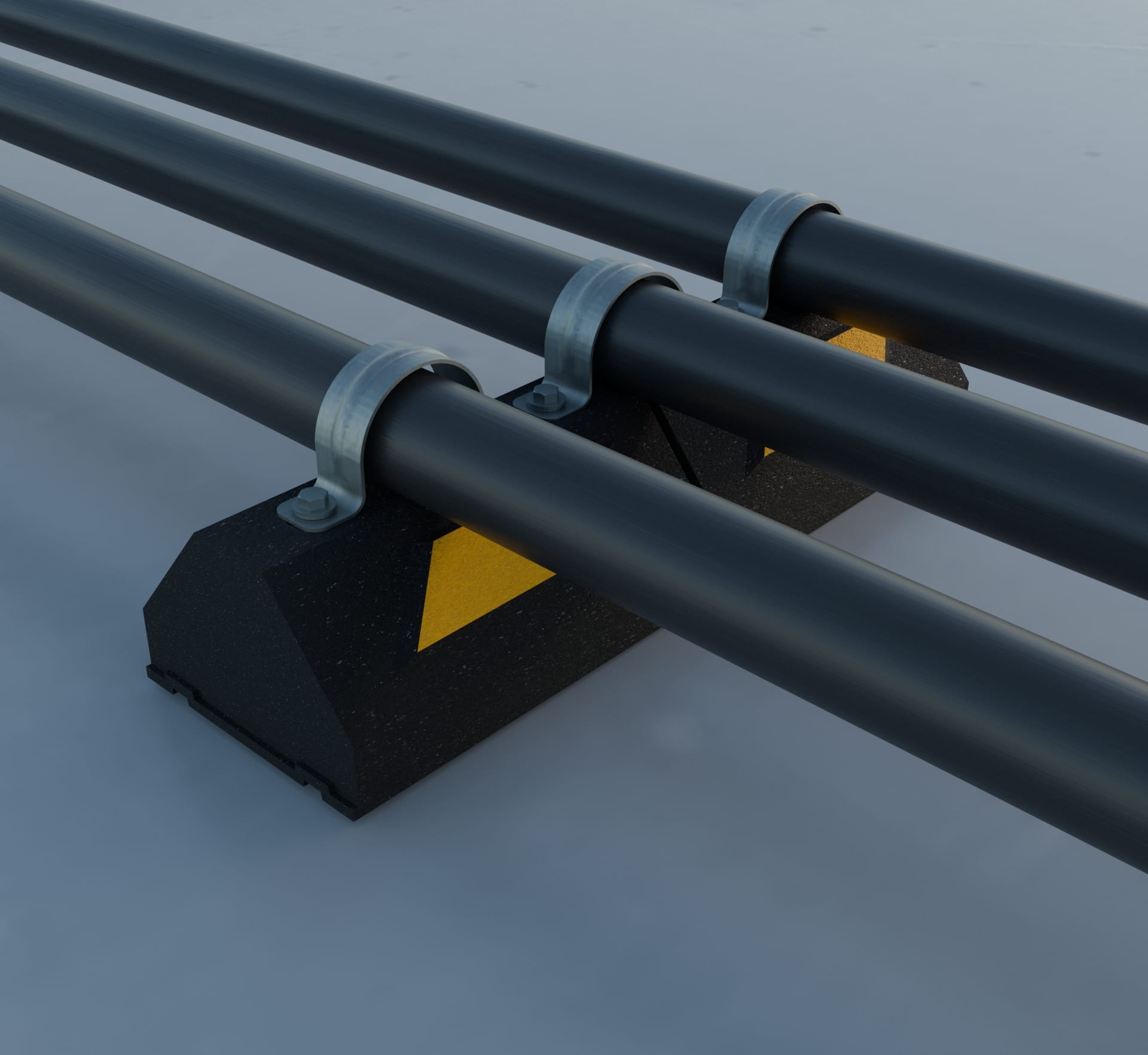

The CXP Series is a non-penetrating rooftop support designed to support all types of conduit, pipes, and a wide range of rooftop applications. It is suitable for most types of roofing materials or other flat surfaces and accepts screw fasteners for straps and/or clamps (sold and supplied by others).
SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
CXP | 4” (102mm) | 6” (152mm) | 9.5” (241mm) | 4.8 lbs | 500 lbs (per 9.5" length) |
CXP2 | 4” (102mm) | 6” (152mm) | 19.3” (490mm) | 9.7 lbs | 500 lbs (per 9.5" length) |
CXP3 | 4” (102mm) | 6” (152mm) | 29” (737mm) | 14.7 lbs | 500 lbs (per 9.5" length) |
CXP4 | 4” (102mm) | 6” (152mm) | 38.8” (986mm) | 19.6 lbs | 500 lbs (per 9.5" length) |
CXP5 | 4” (102mm) | 6” (152mm) | 48.5” (1232mm) | 24.5 lbs | 500 lbs (per 9.5" length) |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
