CSE Series

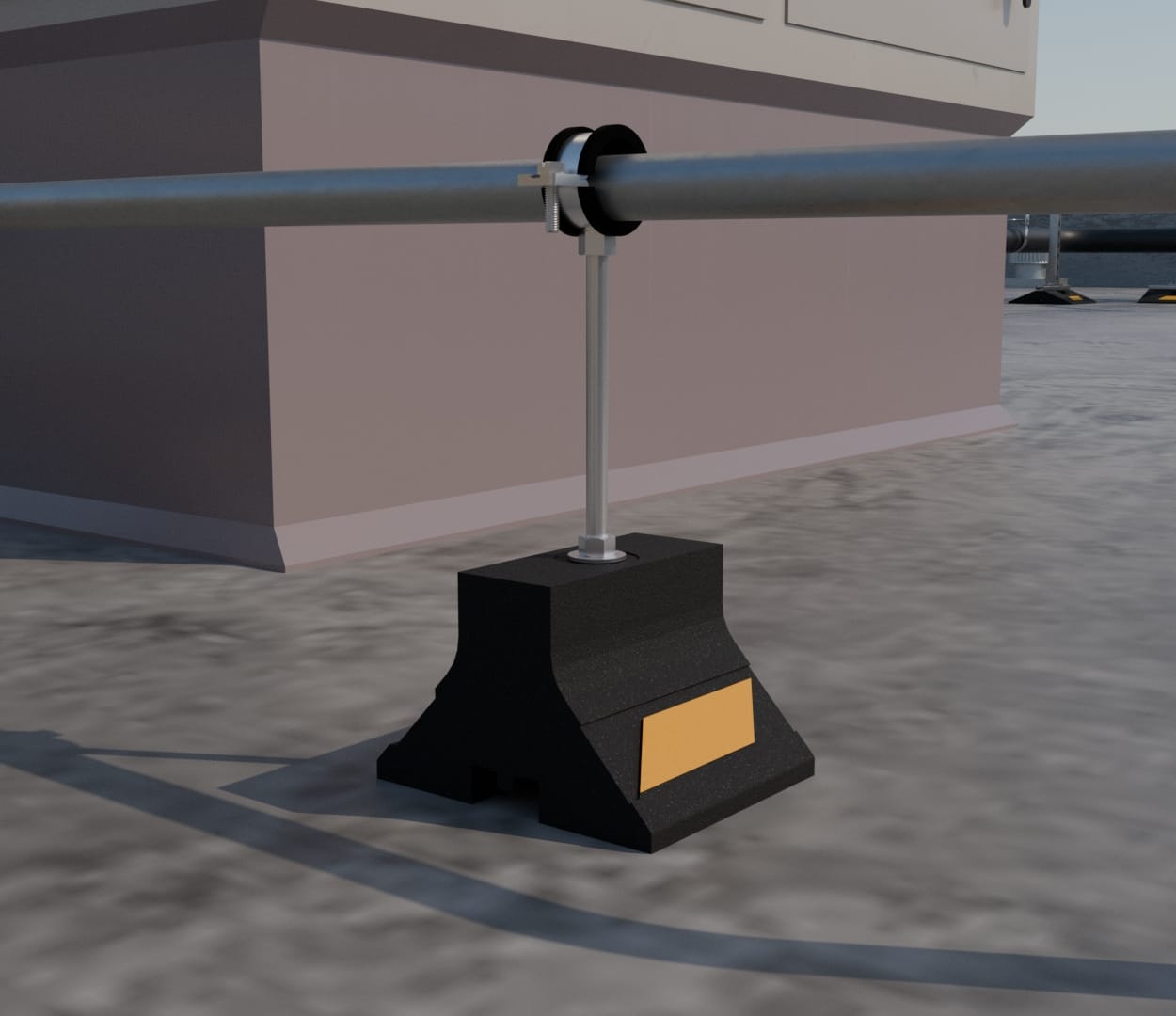

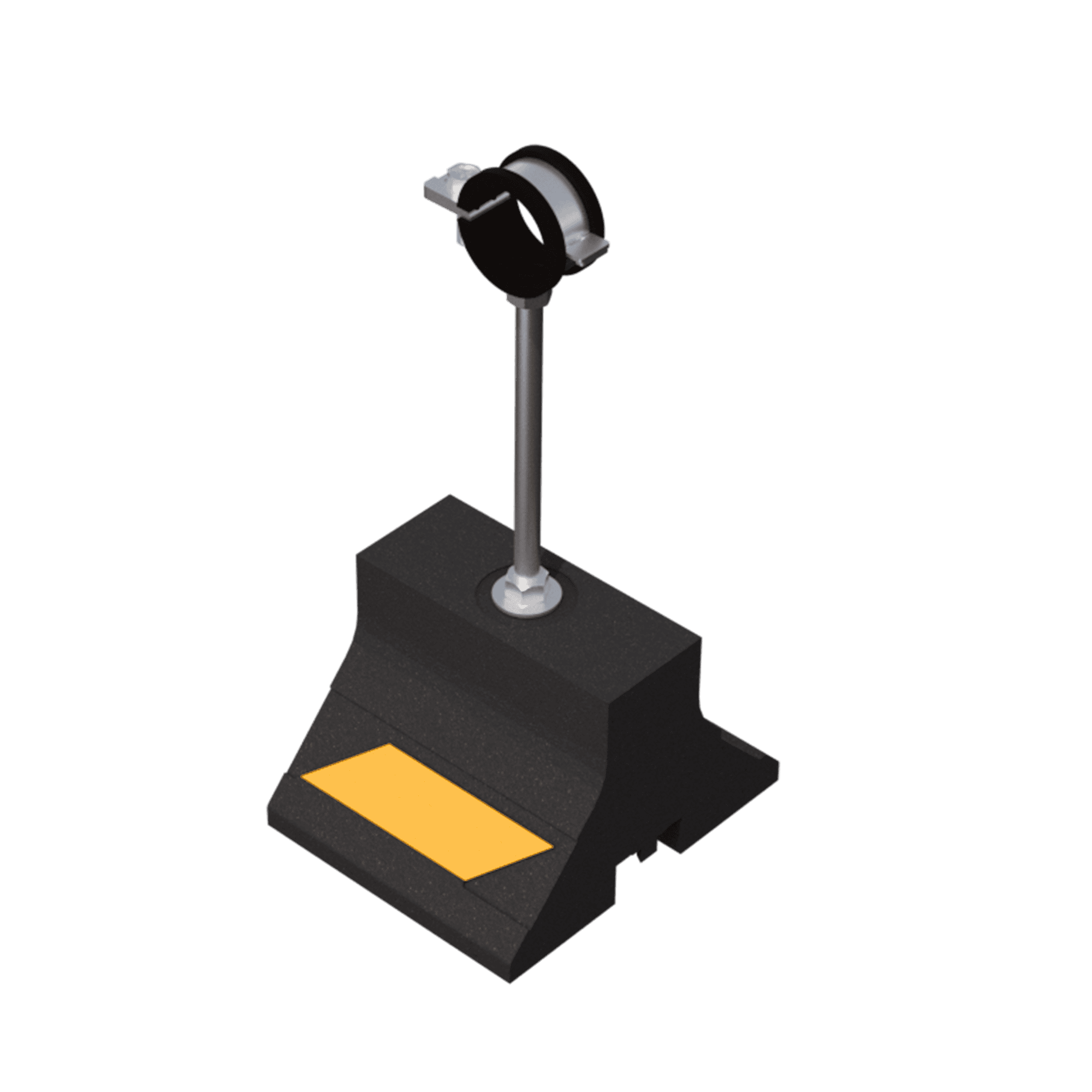

The CSE Copper Tube and Steel Pipe Series is a non-penetrating rooftop support designed to provide elevated support for lightweight gas and refrigeration piping. It is ideal for single-pipe systems requiring elevation adjustment and is suitable for most types of roofing materials or other flat surfaces. Rubber-lined clamps are available in different sizes (sold and supplied by others).
| SKU | HEIGHT TO BOTTOM OF PIPE | WIDTH | LENGTH | WEIGHT | MAX LOAD |
|---|---|---|---|---|---|
CSE5-10 | 9.7” (246mm) | 6” (152mm) | 5” (127mm) | 2.9 lbs | 150 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Clamp - Rubber-lined
Rod - 3/8" zinc-plated all-threaded rod
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
