CS Series

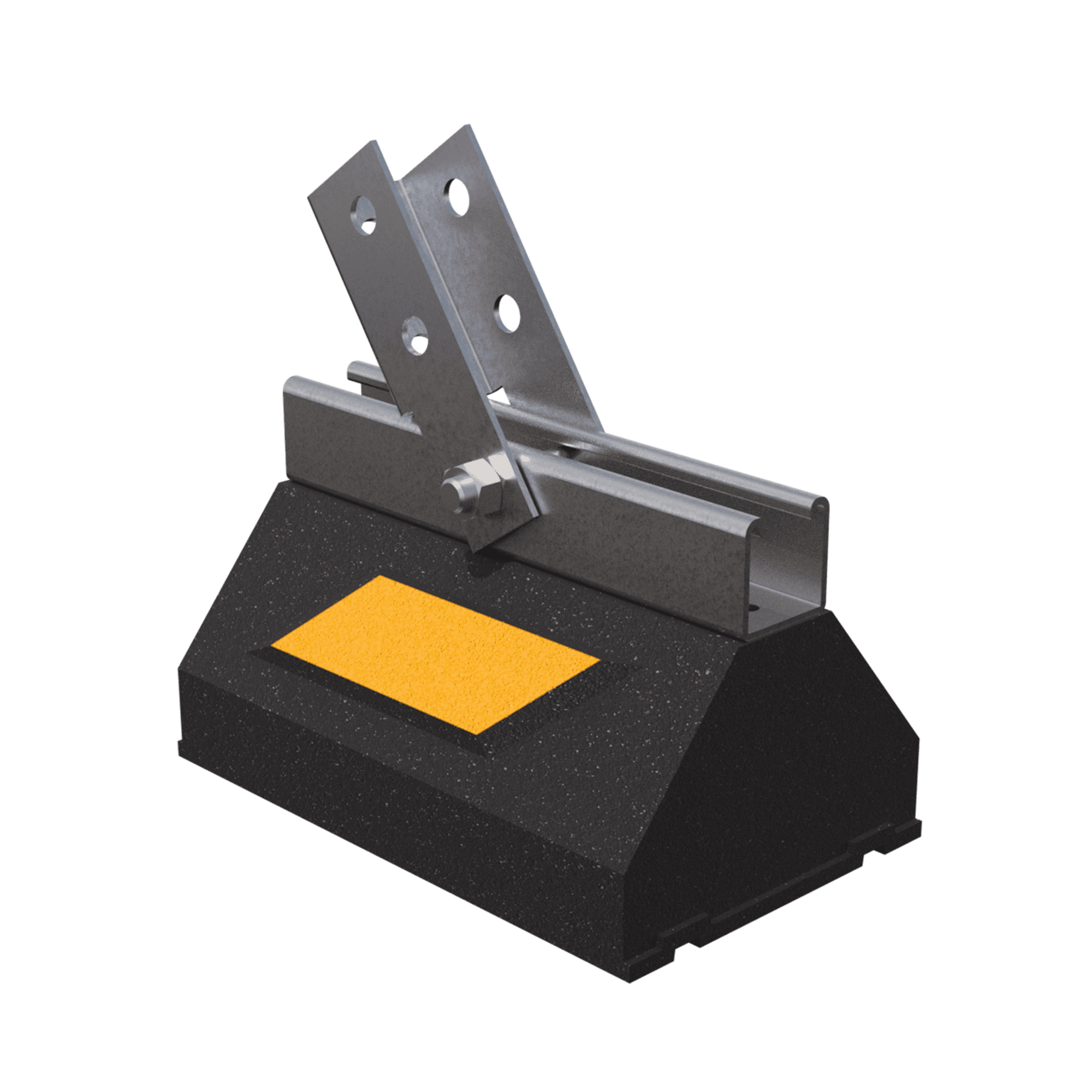

The patented CS-Vari-Angle Series support has variable angle support designed for ventilation duct, walkway systems, HVAC equipment and many other applications. It can be installed on sloped or uneven surfaces. Adapter leg will accommodate 1-5/8” x 1-5/8” steel strut for framing. The C-Port is UV resistant and suitable for installation on any type of roofing material, including sloped surfaces.
Strut is also available in corrosion-resistant stainless steel.
| SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
| CS10 | 5.6” (142mm) | 6” (152mm) | 9.5” (241mm) | 7.4 lbs | 800 lbs |
| CS20 | 5.6” (142mm) | 6” (152mm) | 19.3” (490mm) | 13.9 lbs | 800 lbs (per 9.5" length) |
| CS30 | 5.6” (142mm) | 6” (152mm) | 29” (737mm) | 20.3 lbs | 800 lbs (per 9.5" length) |
| CS40 | 5.6” (142mm) | 6” (152mm) | 38.8” (986mm) | 26.8 lbs | 800 lbs (per 9.5" length) |
| CS48 | 5.6” (142mm) | 6” (152mm) | 48.5” (1232mm) | 33.2 lbs | 800 lbs (per 9.5" length) |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 12-gauge galvanized steel strut (1 5/8” high)
Vari-angle Bracket - 1 7/8” x 1 7/8” 12-gauge galvanized steel
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
