CMPW Heavy Duty Series

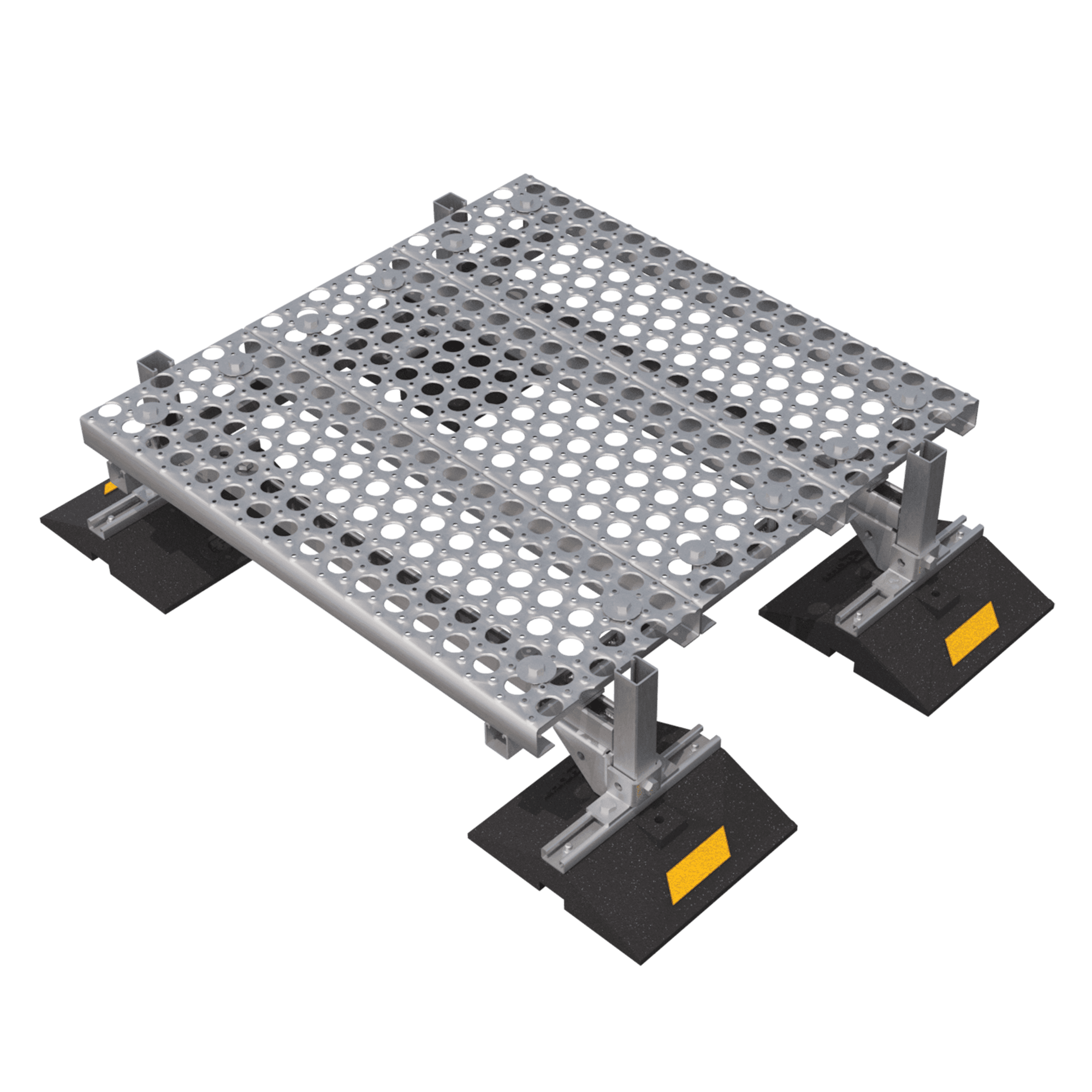

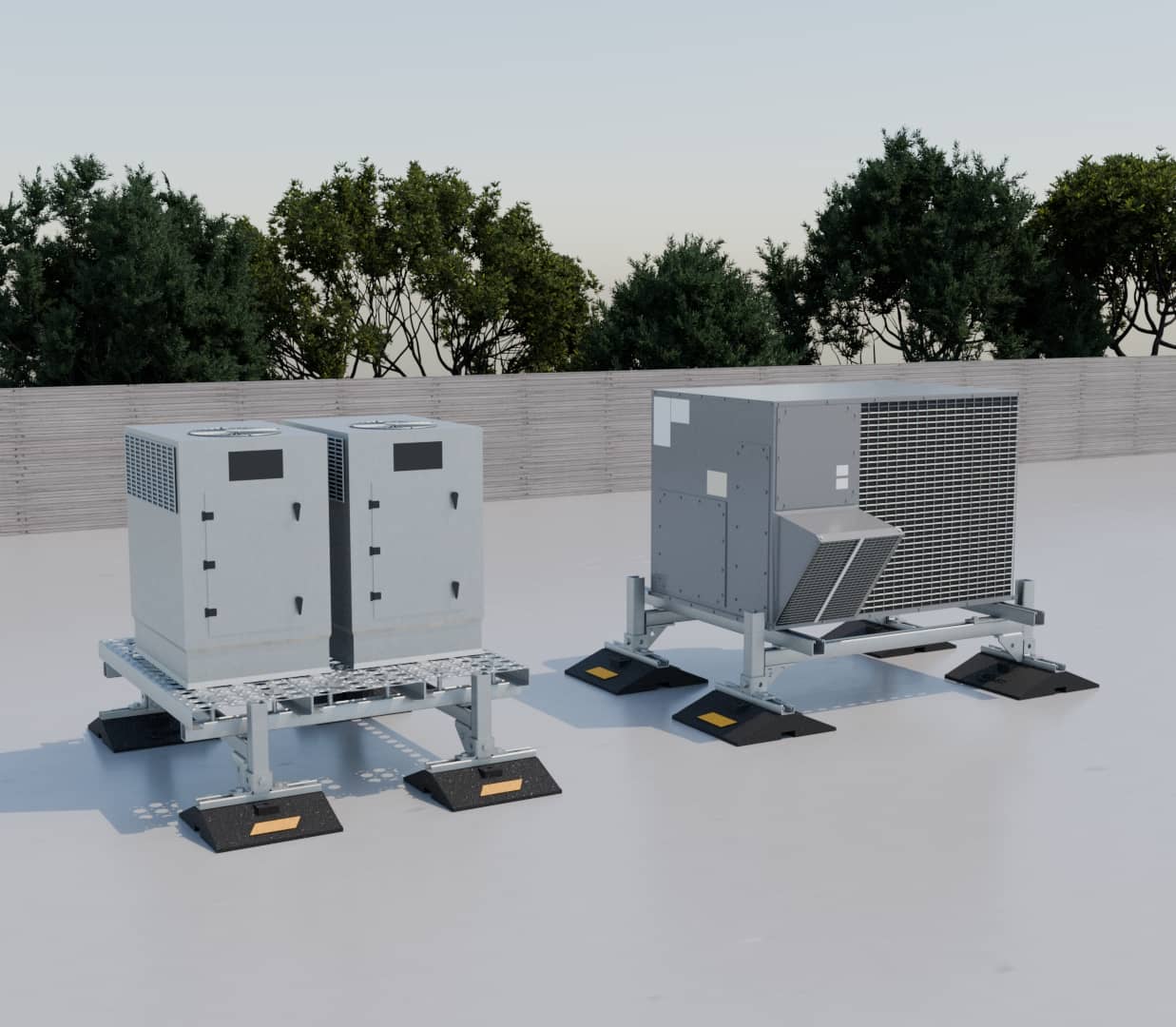

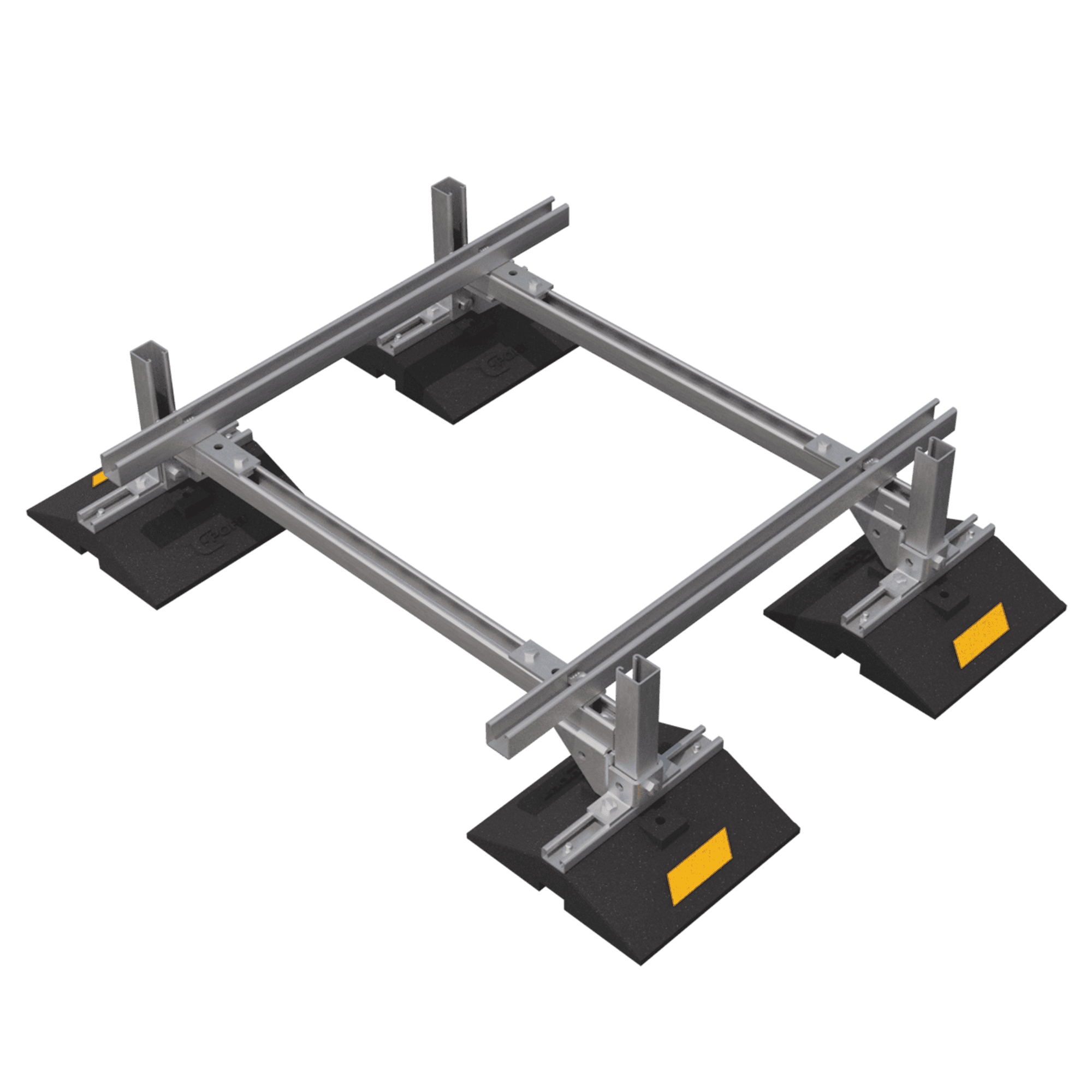

The CMPW Mechanical platforms are designed to elevate rooftop mechanical units and other devices. CMPW Mechanical Supports comes either as a frame with rails or equipped with a deck made from 12″ x 2-1/2″ x 13 gauge steel grating (Referred to with a “D”). The support bases are C-Port CXW supports. The support platforms are customizable in all dimensions per the project requirements. Consult roofing manufacturer or engineer for roof loading.
Available in corrosion resistant stainless steel or aluminum.
| SKU | # OF BASES | WIDTH | LENGTH | HEIGHT | MAX LOAD |
|---|---|---|---|---|---|
| CMPW-363612-4 | 4 | 36” (914mm) | 36” (914mm) | 12” (305mm) | 4000 lbs |
| CMPW-363612-4D | 4 | 36” (914mm) | 36” (914mm) | 12” (305mm) | 4000 lbs |
| CMPW-484812-4 | 4 | 48” (1219mm) | 48” (1219mm) | 12” (305mm) | 3000 lbs |
| CMPW-484812-4D | 4 | 48” (1219mm) | 48” (1219mm) | 12” (305mm) | 3000 lbs |
| CMPW-606012-6 | 6 | 60” (1524mm) | 60” (1524mm) | 12” (305mm) | 2500 lbs |
| CMPW-606012-6D | 6 | 60” (1524mm) | 60” (1524mm) | 12” (305mm) | 2500 lbs |
| CMPW-487212-6 | 6 | 48” (1219mm) | 72” (1828mm) | 12” (305mm) | 6000 lbs |
| CMPW-487212-6D | 6 | 48” (1219mm) | 72” (1828mm) | 12” (305mm) | 6000 lbs |
General Information
- Material
- Warranty
- LEED Credit
Base - 100% recycled rubber, UV resistant
Platform - Pre-Galvanized Steel
10 Years
May qualify for L.E.E.D credits.
