CMPW Medium Duty Series

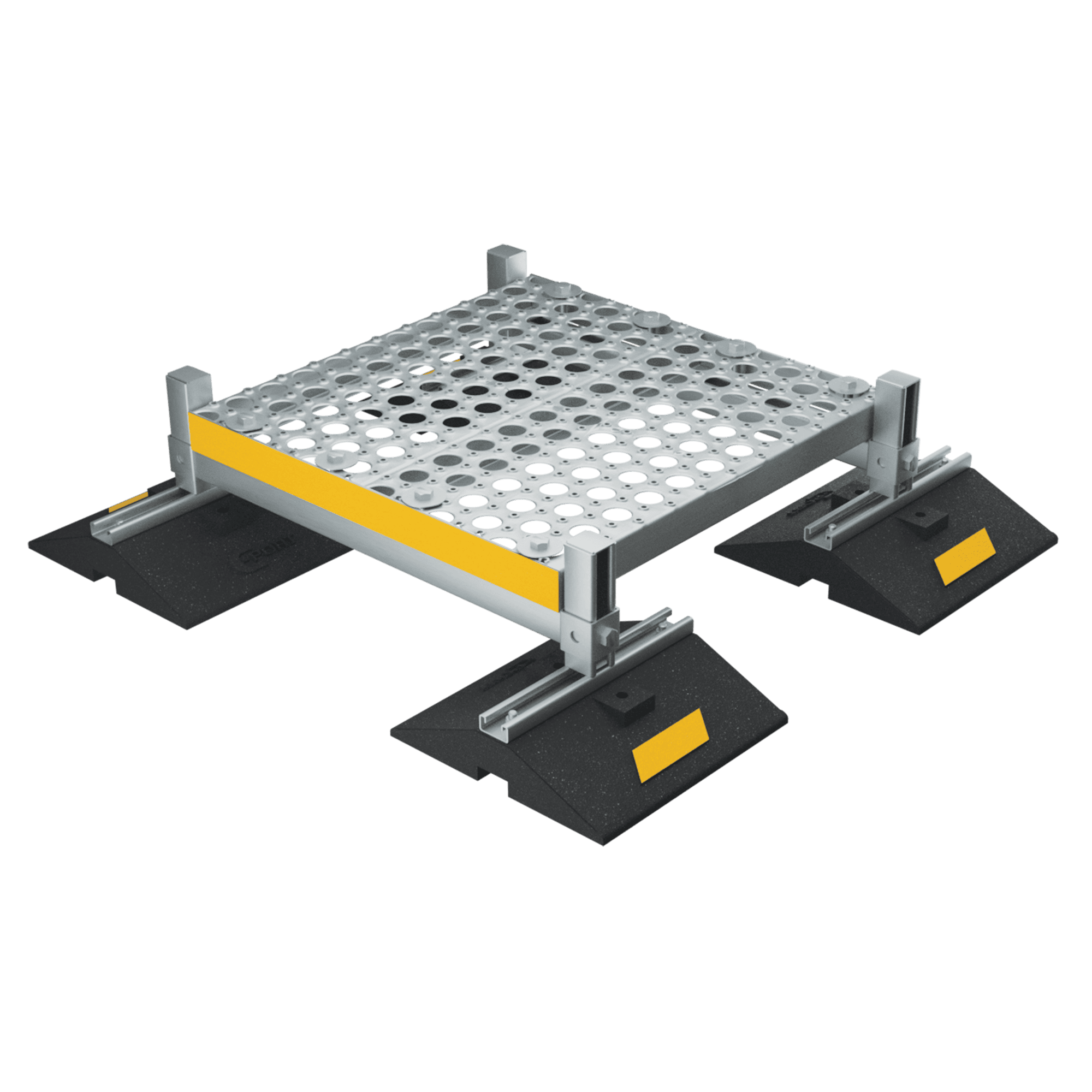

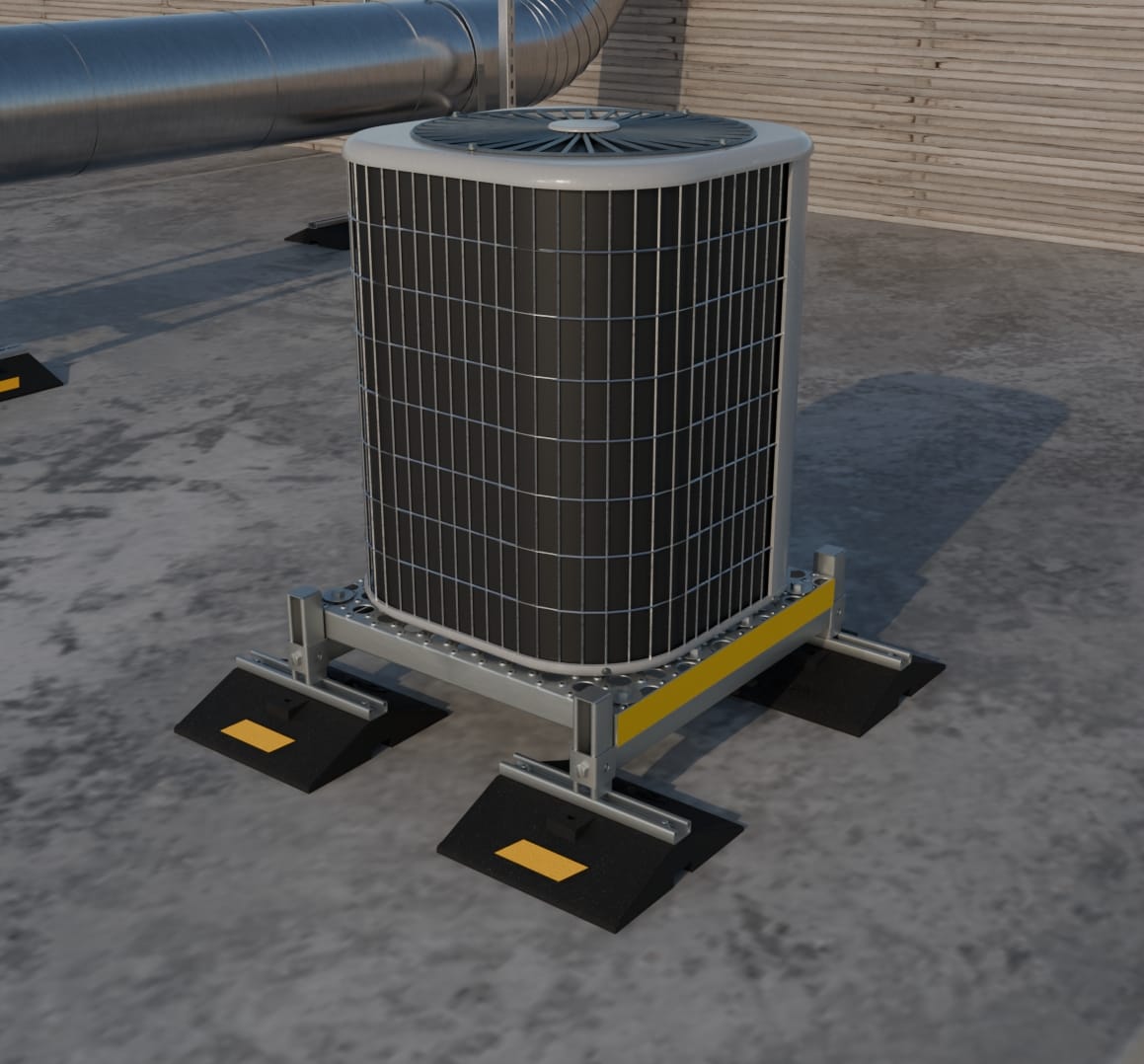

The CMPW Medium Duty Mechanical Platforms are designed to elevate smaller mechanical units on the rooftop or other various surfaces. CMPW Mechanical Supports come equipped with a deck made from 12″ × 2″ × 13-gauge steel grating (referred to as a “D”). The bases are C-Port CXW supports. The support platforms are customizable in all dimensions per project requirements. Enhanced with outdoor reflective tape for added visibility. Consult the roofing manufacturer or engineer for roof loading.
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
SKU | HEIGHT | WIDTH | LENGTH | NO. OF BASES | WEIGHT | MAX. UNIFORM LOAD (PLATFORM) |
|---|---|---|---|---|---|---|
CMPW-MD-24248-4D | 8” (203mm) | 24” (610mm) | 24” (610mm) | 4 | 78.6 lbs | 2800 lbs |
CMPW-MD-24368-4D | 8” (203mm) | 24” (610mm) | 36” (914mm) | 4 | 87.6 lbs | 2800 lbs |
CMPW-MD-36368-4D | 8” (203mm) | 36" (914mm) | 36" (914mm) | 4 | 107.6 lbs | 1900 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized steel strut (13/16” high)
Platform: Galvanized Steel
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
