CH5 Series

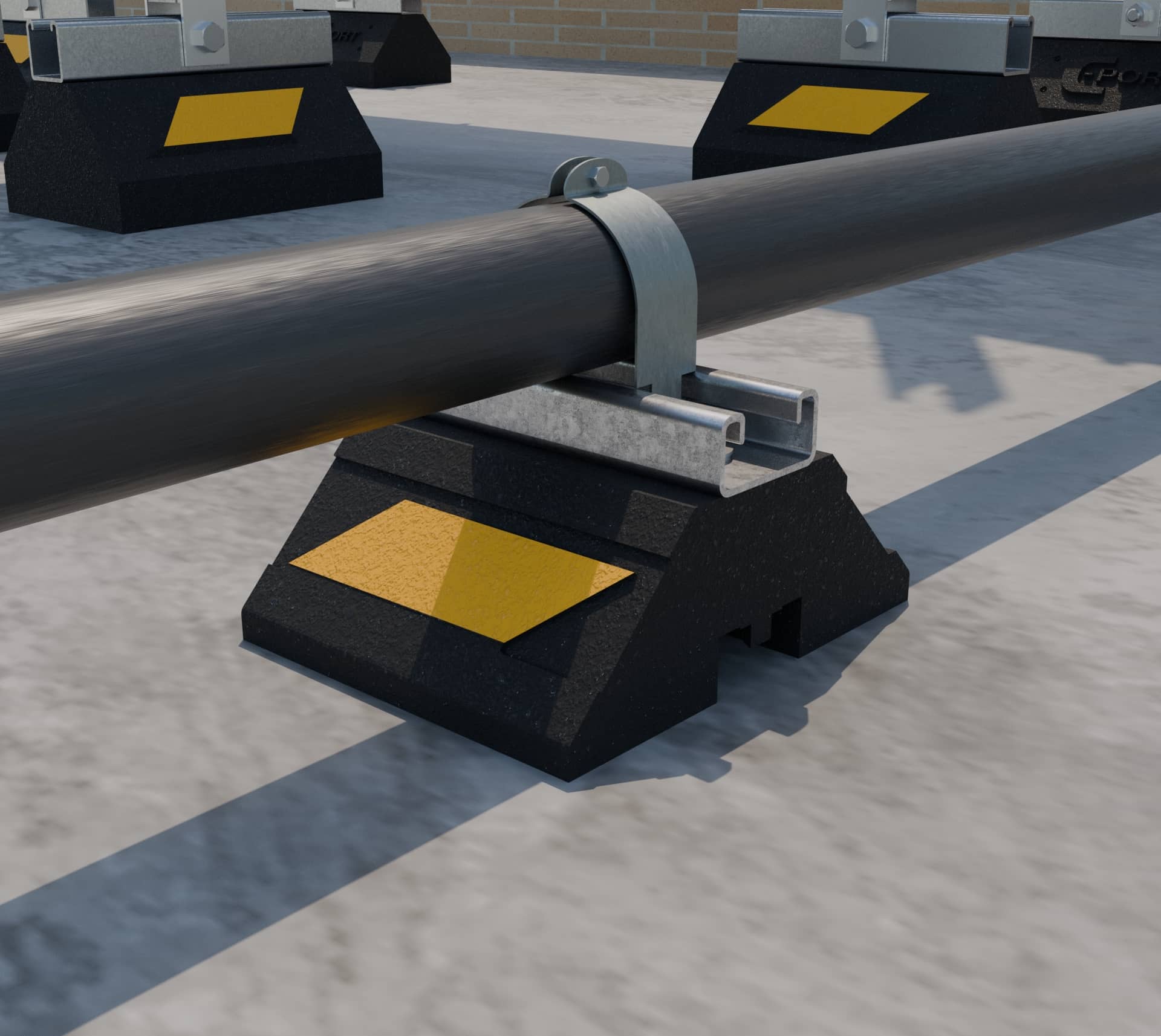

The CH5 Series is a non-penetrating rooftop support and C-Port’s smallest strut channel support, designed to support small conduit and piping across solar, telecom, and a wide range of rooftop applications. It is suitable for most types of roofing materials or other flat surfaces and accepts various straps and/or clamps (sold and supplied by others).
The strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
| SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
CH5 | 3” (76mm) | 6” (152mm) | 5” (127mm) | 2.3 lbs | 300 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized steel strut (13/16” high)
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
