CGW Slipsheet Series

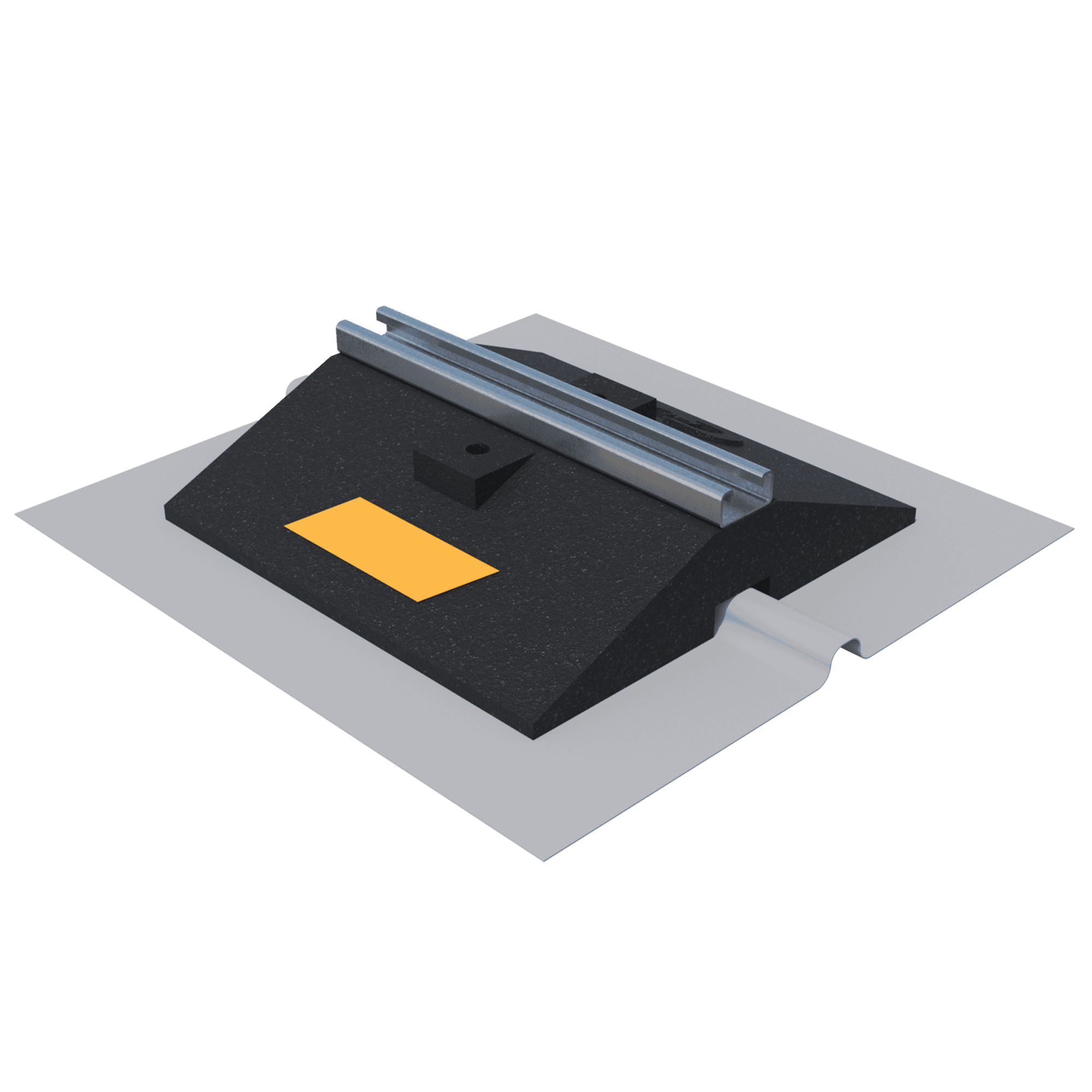

The CGW Series is on our 12” x 12” low-profile wide body base, giving this support series superior stability and load-bearing capacity. The CGW can be glued down to the roof, and the mat provides an extra protective barrier between the rubber base and roof surface. These C-Ports come with your choice of a EPDM (Ethylene propylene diene monomer), TPO (Thermoplastic-polyolefin) or PVC (Polyvinyl chloride) slipsheet. The CGW is designed for support of gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications.
Available in corrosion-resistant stainless steel or aluminum.
| SKU | HEIGHT | BASE WIDTH | BASE LENGTH | MAT WIDTH | MAT LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|---|---|
| CGW12 | 3.3” (84mm) | 12” (305mm) | 12” (305mm) | 17” (432mm) | 18” (457mm) | 10.8 lbs | 1400 lbs |
| CGW24 | 3.3” (84mm) | 12” (305mm) | 24” (610mm) | 17” (432mm) | 30” (762mm) | 21.4 lbs | 1400 lbs (per 12" length) |
| CWG36 | 3.3” (84mm) | 12” (305mm) | 36” (914mm) | 17” (432mm) | 42” (1067mm) | 32 lbs | 1400 lbs (per 12" length) |
| CGW48 | 3.3” (84mm) | 12” (305mm) | 48” (1219mm) | 17” (432mm) | 54” (1372mm) | 42.7 lbs | 1400 lbs (per 12" length) |
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized channel strut (13/16” high)
Slipsheet - EPDM, TPO or PVC
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
