CESHW Series

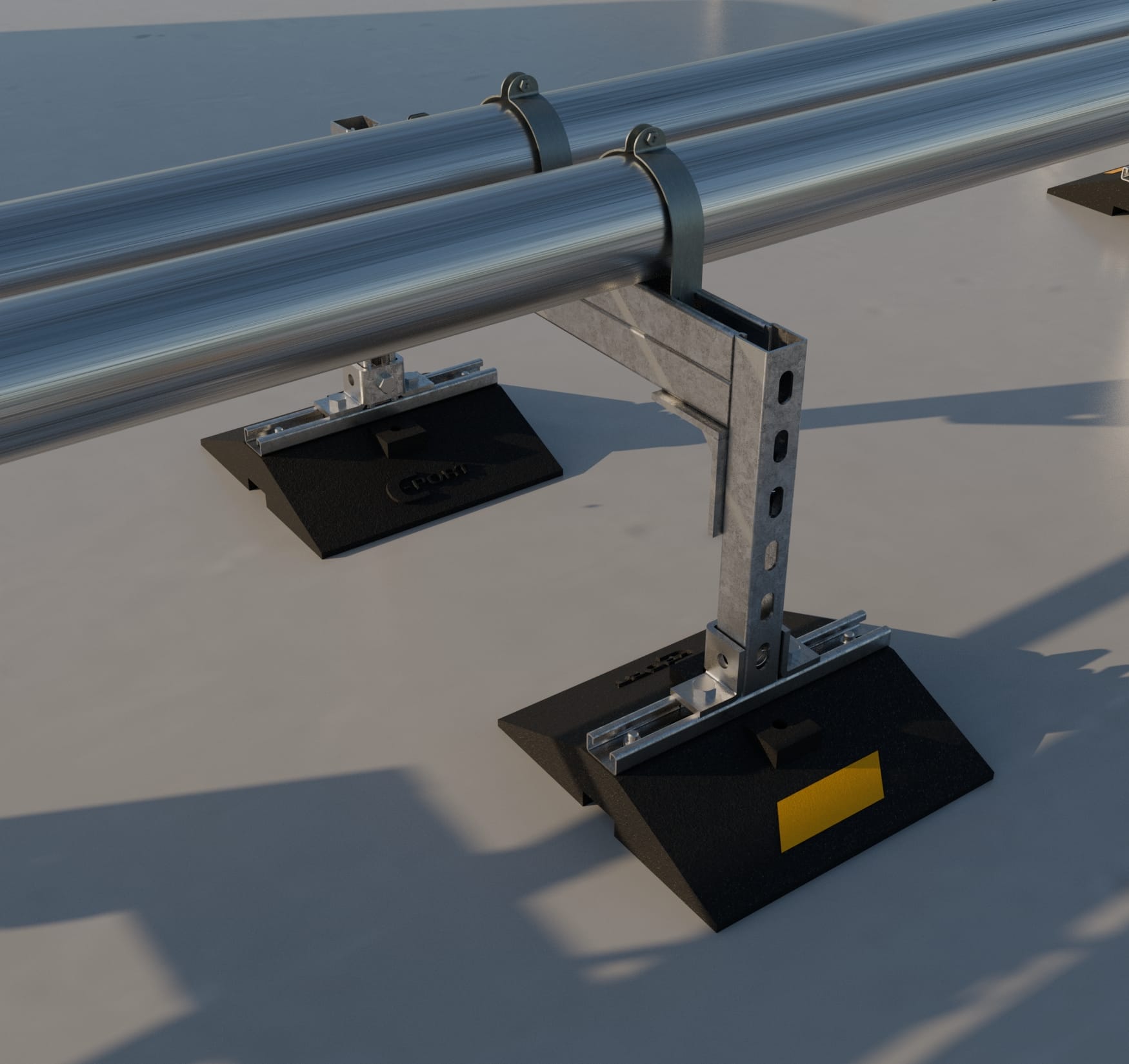

The CESHW Heavy Duty Series is a non-penetrating rooftop support that provides elevated support for heavy load-bearing applications. It is designed to support gas and refrigeration piping, cable trays, electrical conduit, HVAC equipment, and multiple-line rooftop systems. It is suitable for most types of roofing materials or other flat surfaces and accepts various straps and/or clamps (sold and supplied by others).
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
| SKU | HEIGHT | CROSSBEAM WIDTH | BASE LENGTH | WEIGHT | MAX. UNIFORM LOAD |
|---|---|---|---|---|---|
CESHW12-1624 | 16” (406mm) | 24” (610mm) | 12” (305mm) | 38.4 lbs | 2800 lbs |
CESHW12-1636 | 16” (406mm) | 36” (914mm) | 12” (305mm) | 42.2 lbs | 2800 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized steel strut (13/16” high)
Crossbeam - 12-gauge galvanized steel strut (1 5/8” wide x 3 1/4” high)
Vertical Strut - 12-gauge galvanized steel strut (1 5/8” wide x 1 5/8” high)
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
