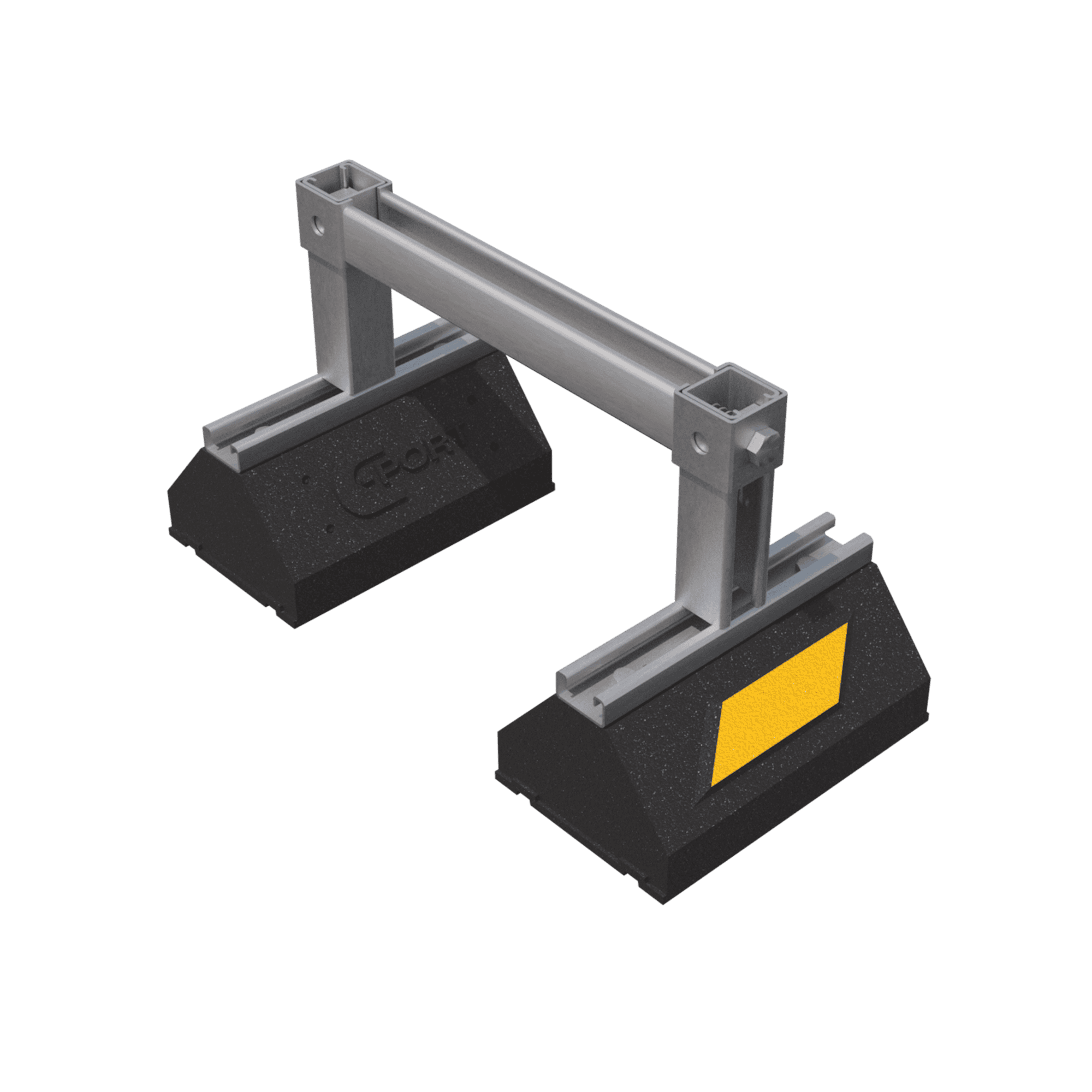

CES Series

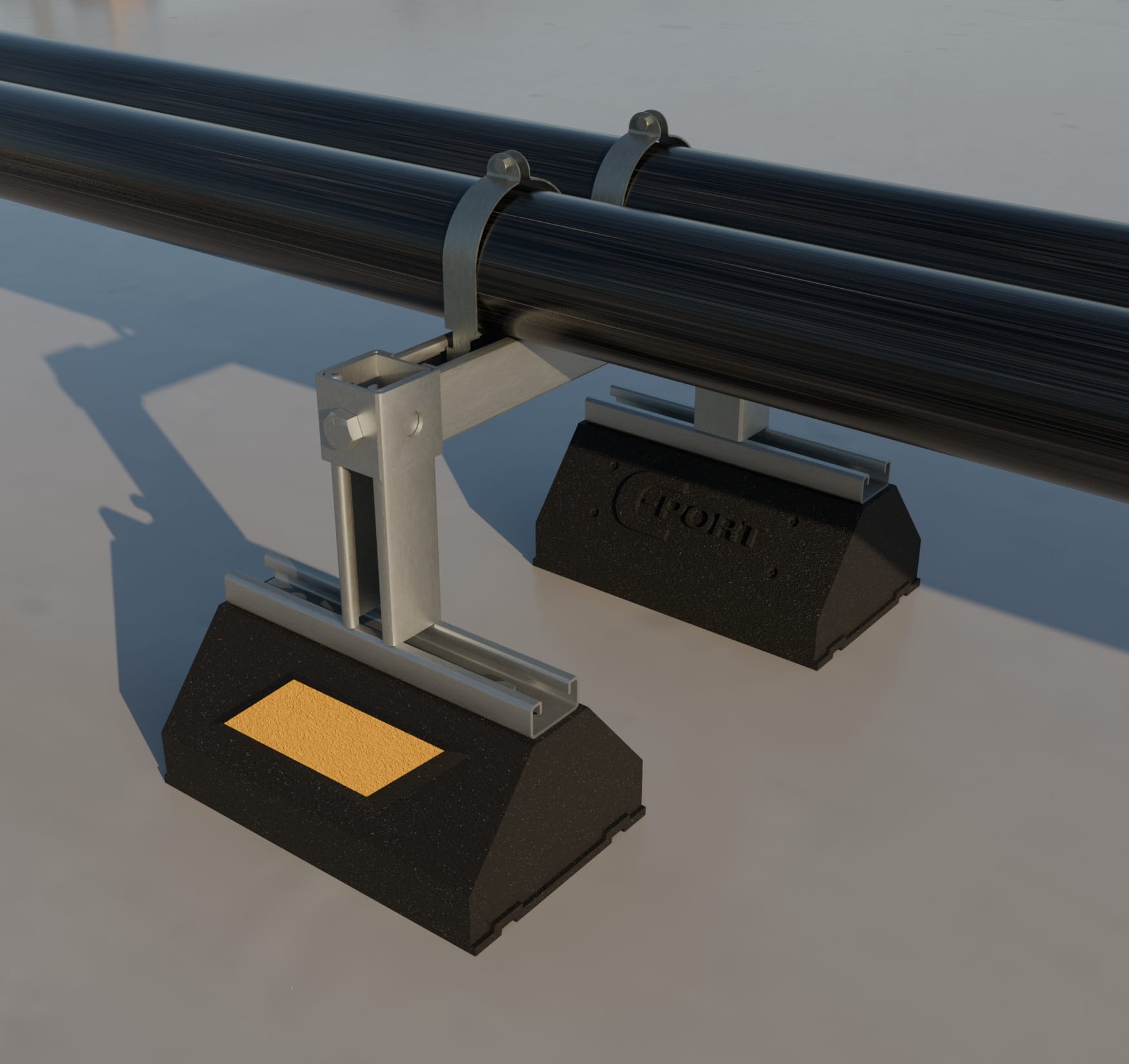

The CES Medium Duty Series is a non-penetrating rooftop support that provides elevated support for load-bearing applications. It is designed to support gas and refrigeration piping, cable trays, electrical conduit, HVAC equipment, and multiple-line rooftop systems. It is suitable for most types of roofing materials or other flat surfaces and accepts various straps and/or clamps (sold and supplied by others).
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
| SKU | HEIGHT | CROSSBEAM WIDTH | BASE LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
CES10-1012 | 10.7” (272mm) | 12” (305mm) | 9.5” (241mm) | 16.3 lbs | 720 lbs |
CES10-1024 | 10.7” (272mm) | 24” (610mm) | 9.5” (241mm) | 18.2 lbs | 360 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized steel strut (13/16” high)
Crossbeam and Vertical Strut - 12-gauge galvanized steel strut (1 5/8” wide x 1 5/8” high)
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
