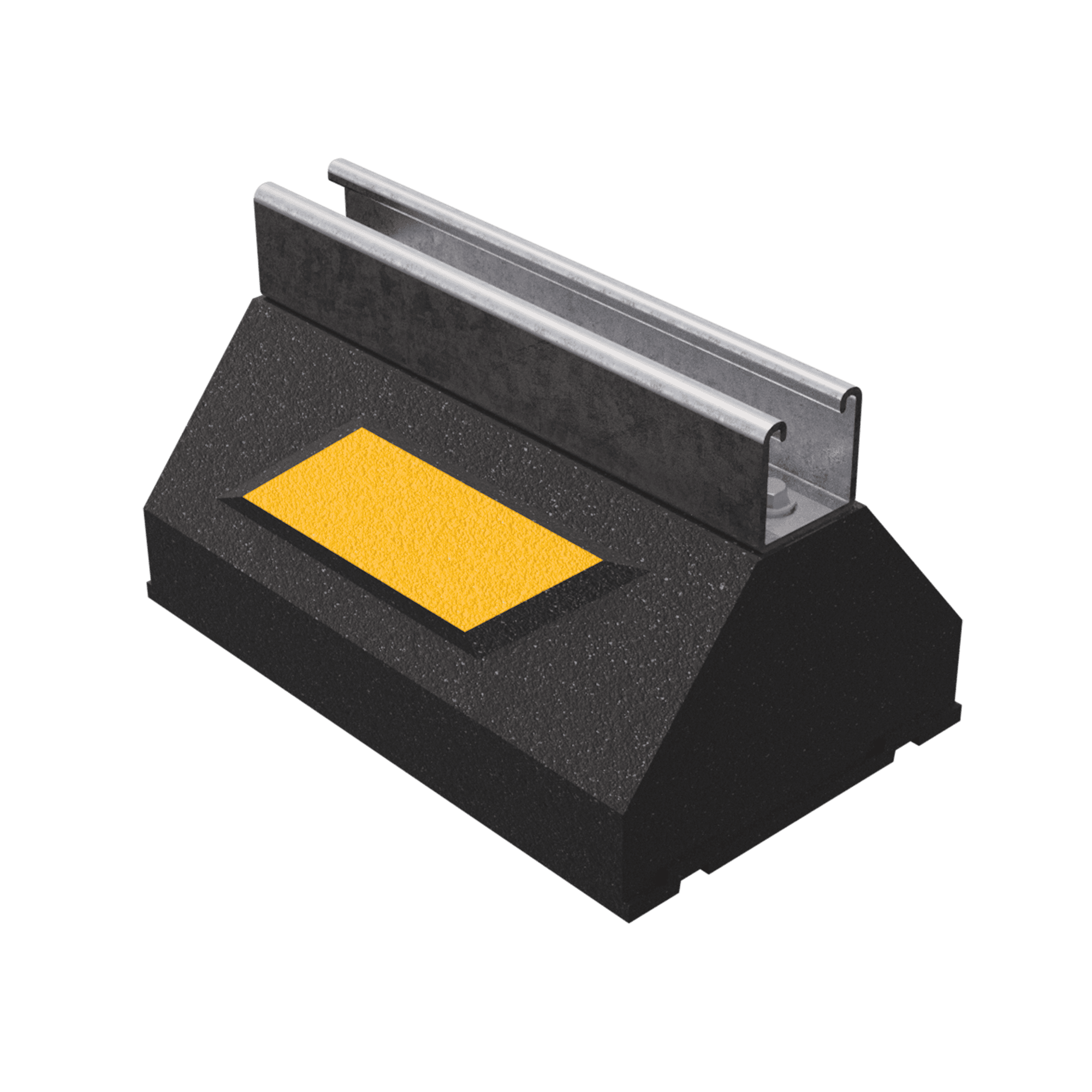

C500 Series

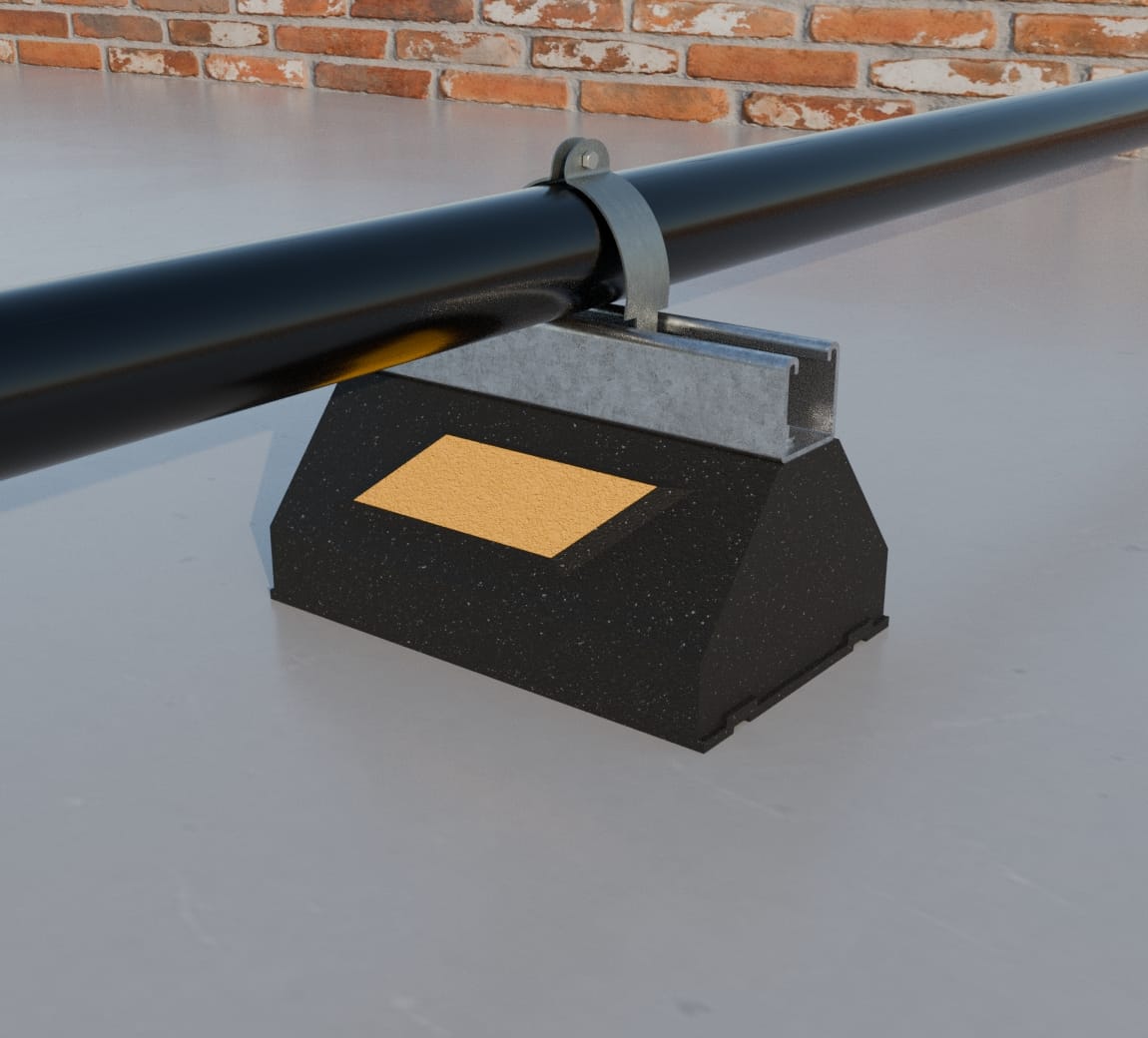

The C500 Series provide additional height beyond the C Series to meet various building codes. Just like the C Series, they are designed for support of gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment and hundreds of other applications.
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
| SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX LOAD |
|---|---|---|---|---|---|
| C510 | 5.6” (142mm) | 6” (152mm) | 9.5” (241mm) | 6.3 lbs | 800 lbs |
C520 | 5.6” (142mm) | 6” (152mm) | 19.3” (490mm) | 12.9 lbs | 800 lbs (per 9.5" length) |
C530 | 5.6” (142mm) | 6” (152mm) | 29” (737mm) | 19.4 lbs | 800 lbs (per 9.5" length) |
C540 | 5.6” (142mm) | 6” (152mm) | 38.8” (986mm) | 26 lbs | 800 lbs (per 9.5" length) |
C548 | 5.6” (142mm) | 6” (152mm) | 48.5” (1232mm) | 32.5 lbs | 800 lbs (per 9.5" length) |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Strut - 12-gauge galvanized steel strut (1 5/8” high)
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
