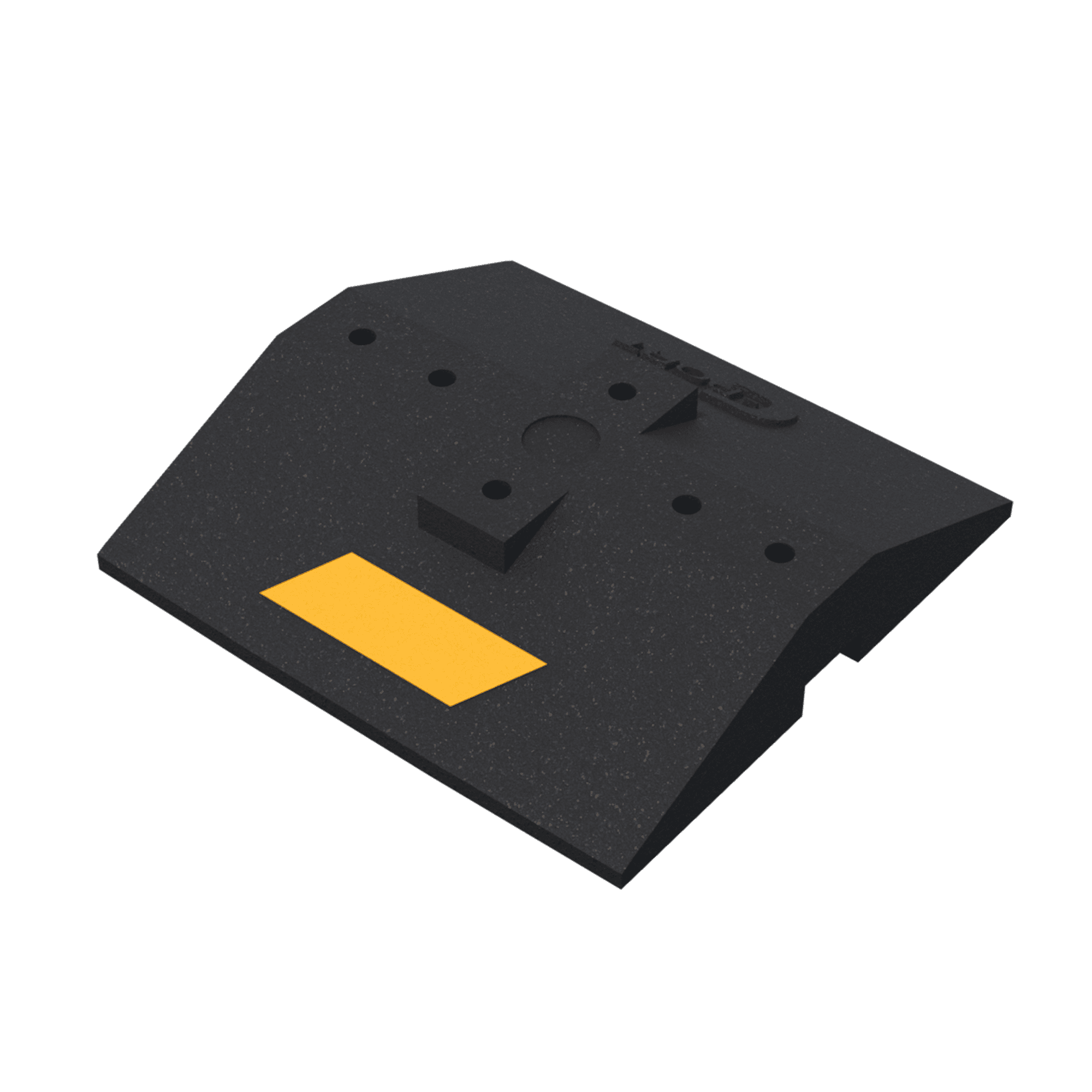

CXW Series

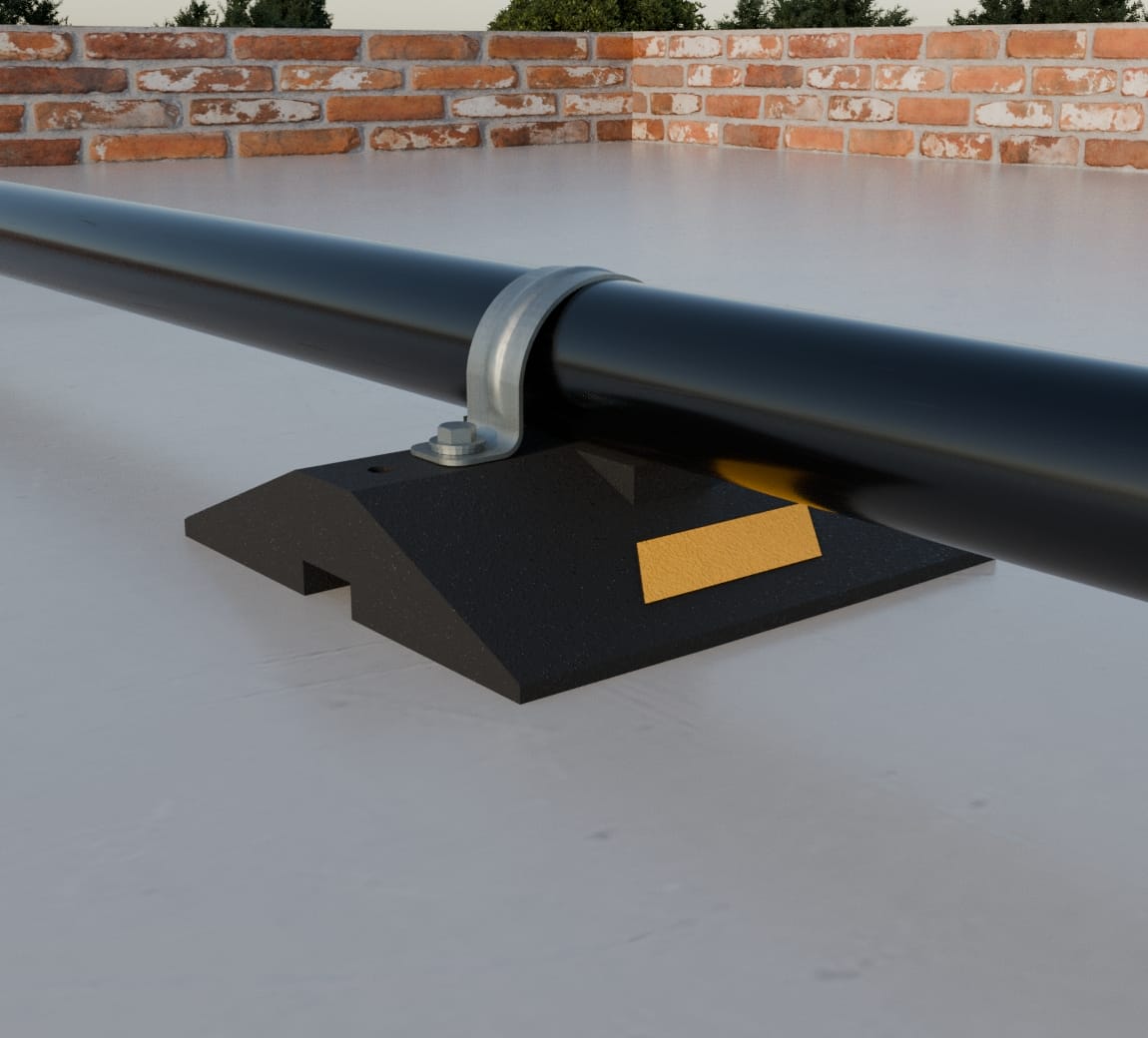

The CXW Series is a non-penetrating rooftop support built on C-Port’s wide-body base, providing increased stability and load-bearing capacity. It is designed to support all types of conduit, pipes, and a wide range of rooftop applications. It is suitable for most types of roofing materials or other flat surfaces and accepts screw fasteners for straps and/or clamps (sold and supplied by others).
SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
CXW12 | 2.5" (64mm) | 12” (305mm) | 12” (305mm) | 9.2 lbs | 1000 lbs (per 12" length) |
| CXW24 | 2.5" (64mm) | 12” (305mm) | 24” (610mm) | 19.12 lbs | 1000 lbs (per 12" length) |
| CXW36 | 2.5" (64mm) | 12” (305mm) | 36” (914mm) | 27.6 lbs | 1000 lbs (per 12" length) |
CXW48 | 2.5" (64mm) | 12” (305mm) | 48” (1219mm) | 36.7 lbs | 1000 lbs (per 12" length) |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
