C Series

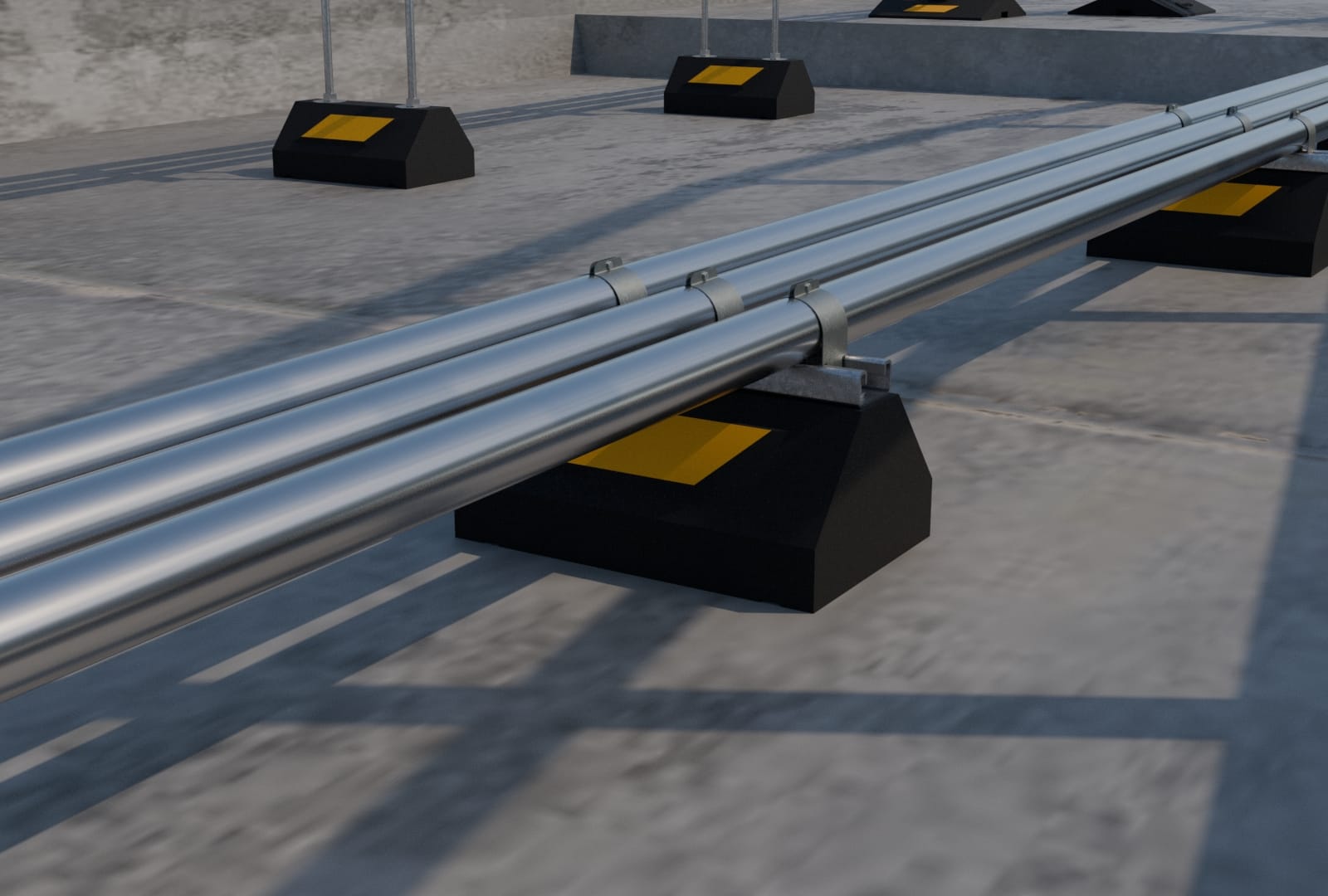

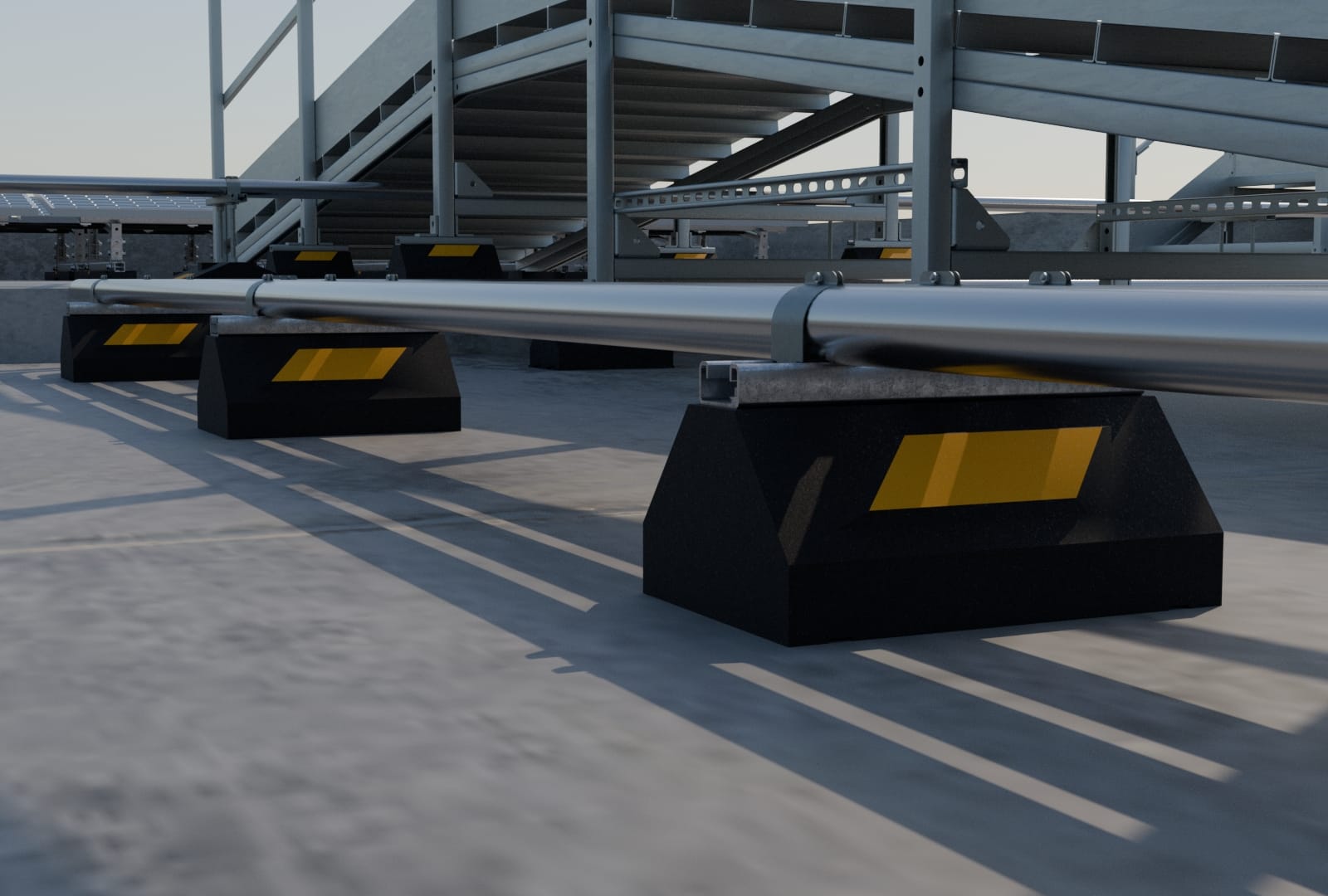

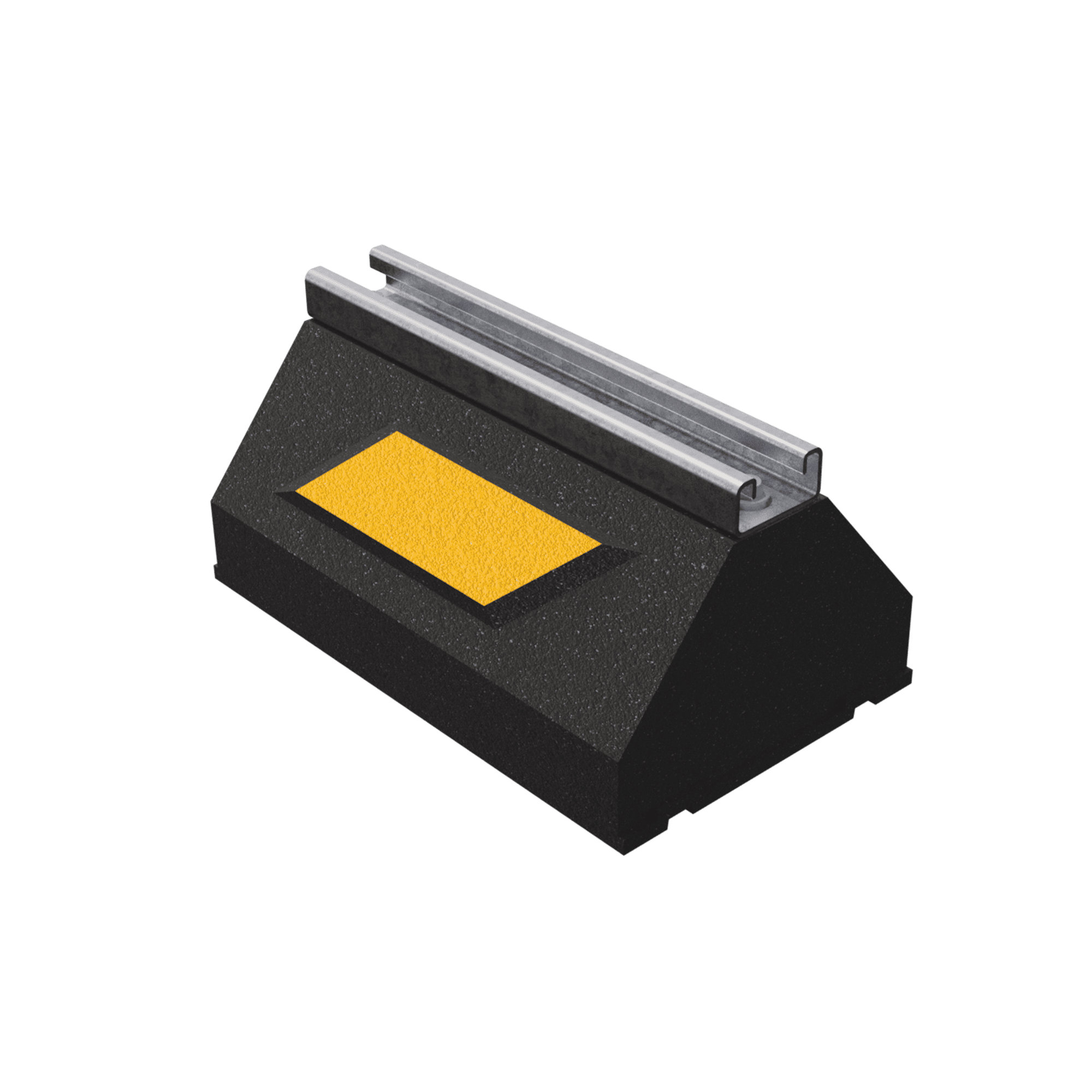

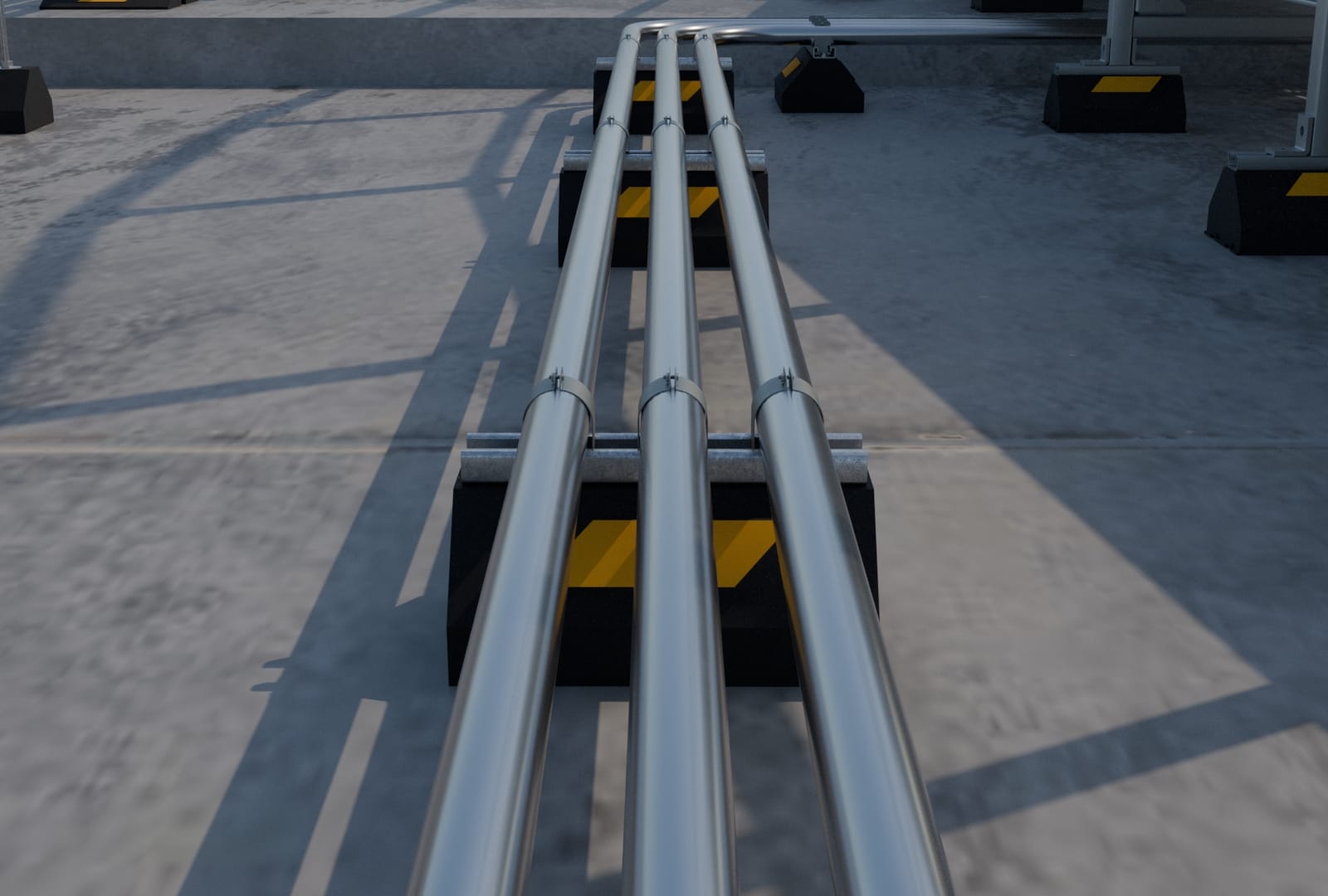

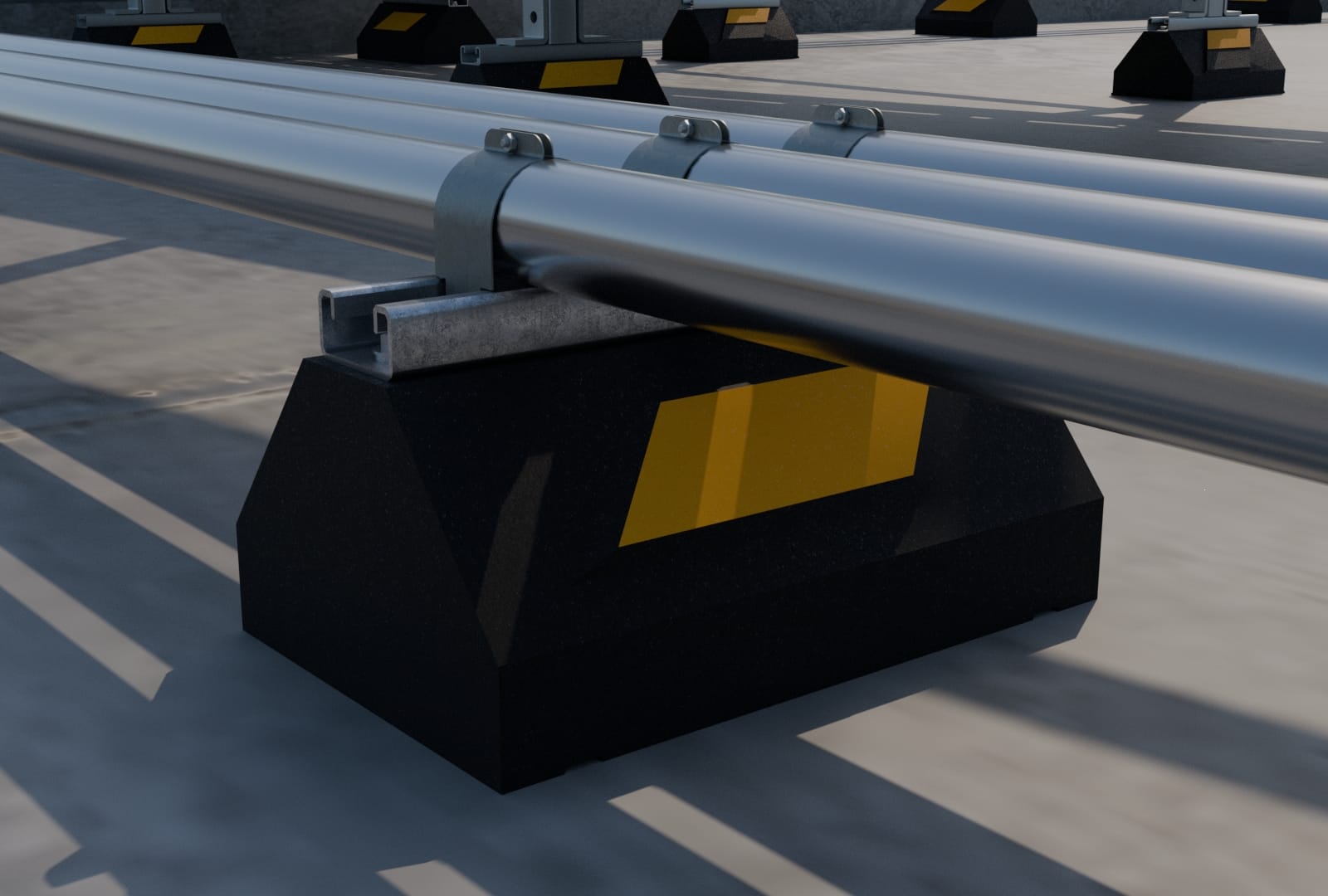

The C Series is a non-penetrating rooftop support designed to support gas and refrigeration piping, cable trays, electrical conduit, HVAC equipment, and multiple-line rooftop systems. It is suitable for most types of roofing materials or other flat surfaces and accepts various straps and/or clamps (sold and supplied by others).
Strut is available in corrosion-resistant galvanized steel, stainless steel, or aluminum.
| SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
| C10 | 4.8” (122mm) | 6” (152mm) | 9.5” (241mm) | 5.6 lbs | 800 lbs (per 9.5" length) |
| C20 | 4.8” (122mm) | 6” (152mm) | 19.3” (490mm) | 11.5 lbs | 800 lbs (per 9.5" length) |
| C30 | 4.8” (122mm) | 6” (152mm) | 29” (737mm) | 17.4 lbs | 800 lbs (per 9.5" length) |
| C40 | 4.8” (122mm) | 6” (152mm) | 38.8” (986mm) | 23.2 lbs | 800 lbs (per 9.5" length) |
| C48 | 4.8” (122mm) | 6” (152mm) | 48.5” (1232mm) | 29 lbs | 800 lbs (per 9.5" length) |
Note: All measurements may vary by +/- 3%
General Information
Base – 100% recycled rubber, UV resistant
Strut - 14-gauge galvanized steel strut (13/16” high)
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
