AP Series

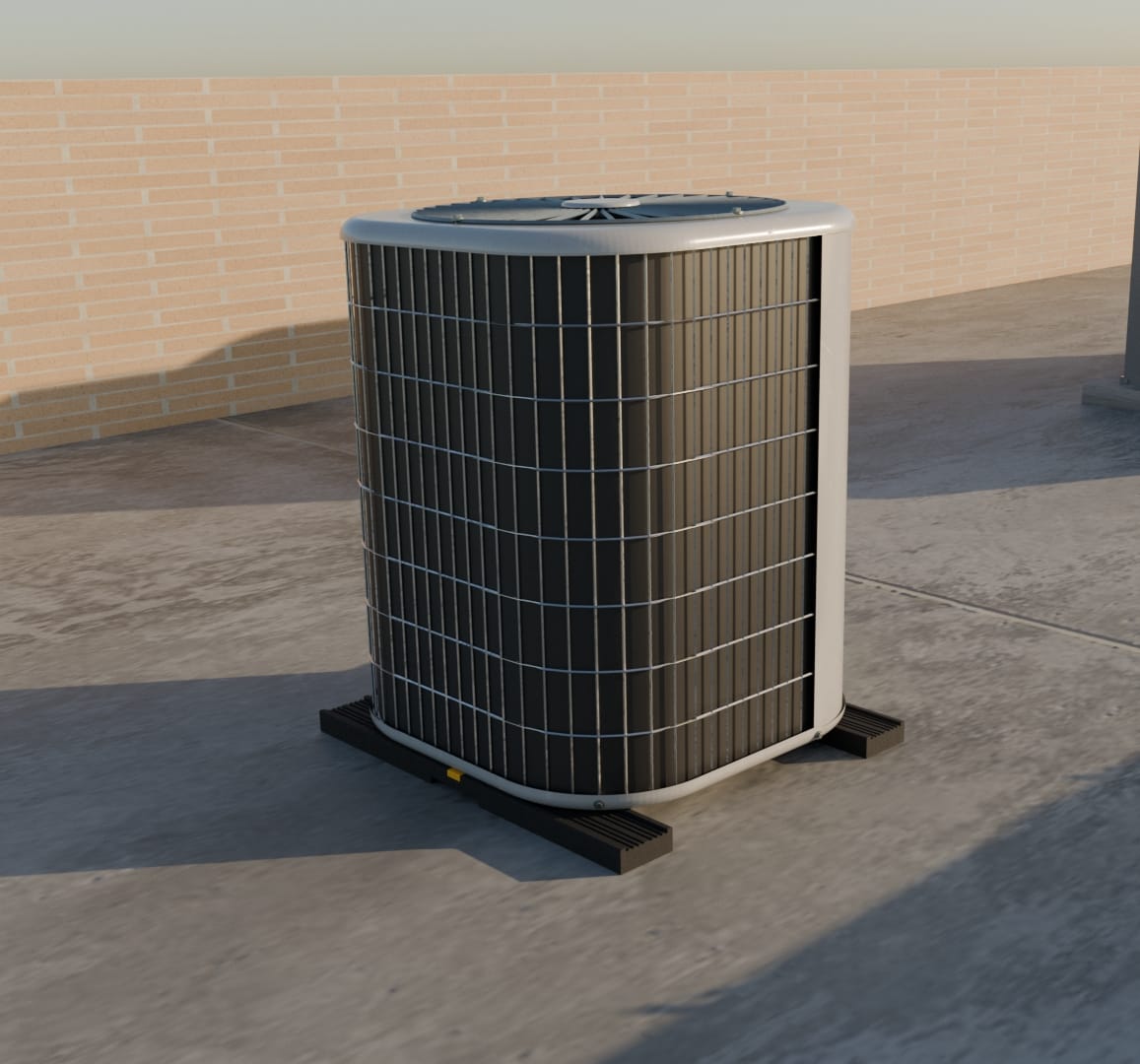

The AP Air-Port Utility Pads Series is a non-penetrating rooftop support featuring a grooved, recessed tray design that helps prevent movement and dampen vibration. Its proprietary free-flow leg system promotes drainage and helps prevent moss and mould growth. It is designed to support HVAC and electrical equipment and is suitable for most types of roofing materials or other flat surfaces.
SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX. LOAD |
|---|---|---|---|---|---|
AP06 | 2.2” (56mm) | 5.6” (142mm) | 6” (152mm) | 2 lbs | 200 lbs |
AP24 | 2.2” (56mm) | 5.6” (142mm) | 24” (610mm) | 8 lbs | 650 lbs |
AP36 | 2.2” (56mm) | 5.6” (142mm) | 36” (914mm) | 12 lbs | 1000 lbs |
Note: All measurements may vary by +/- 3%
General Information
Base - 100% recycled rubber, UV resistant
Limited Lifetime Warranty
Refer to local code.
May qualify for L.E.E.D credits.
